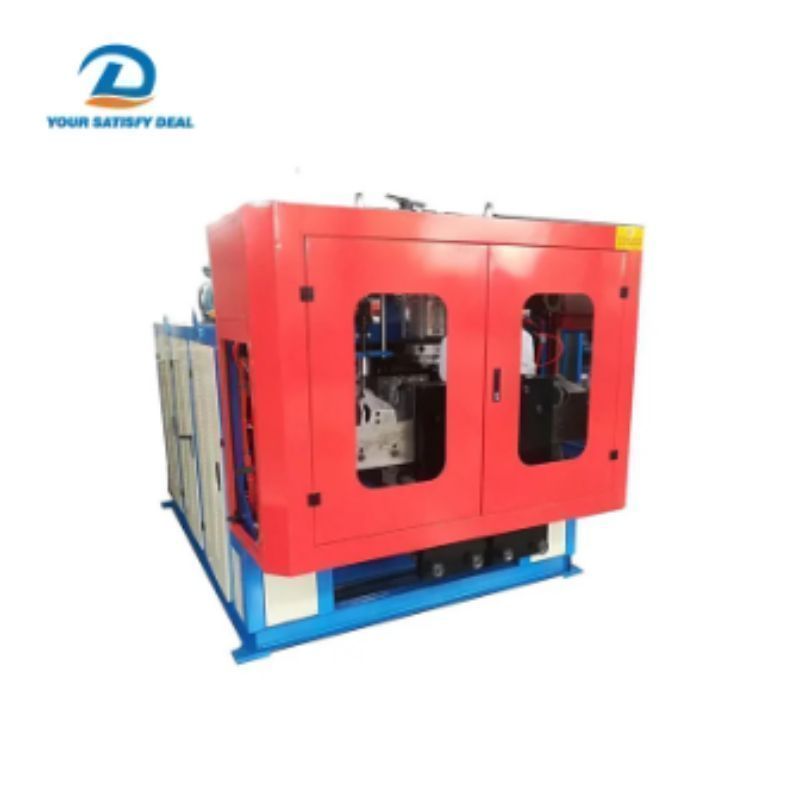

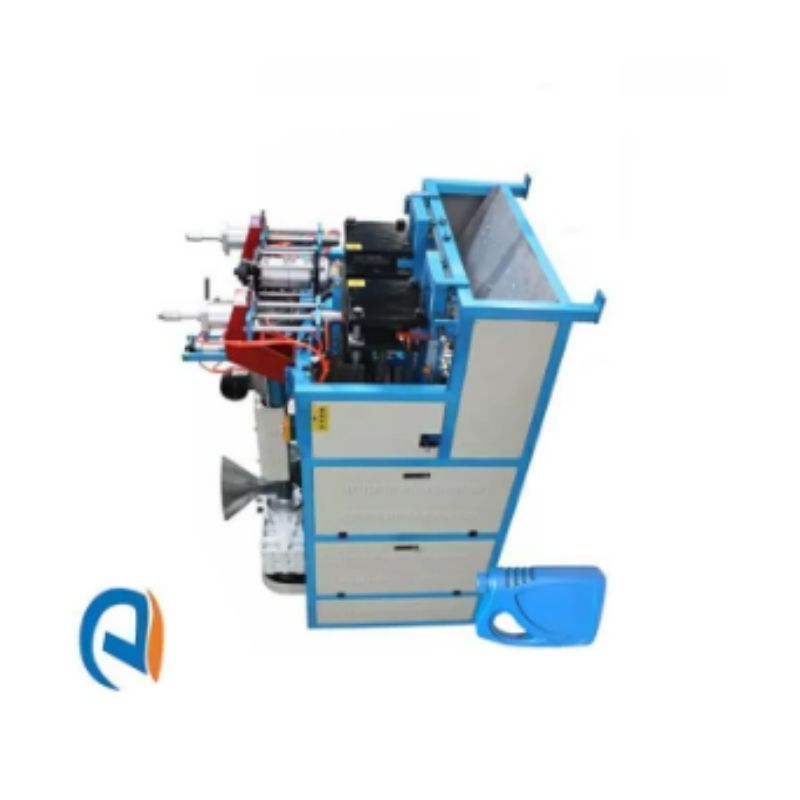

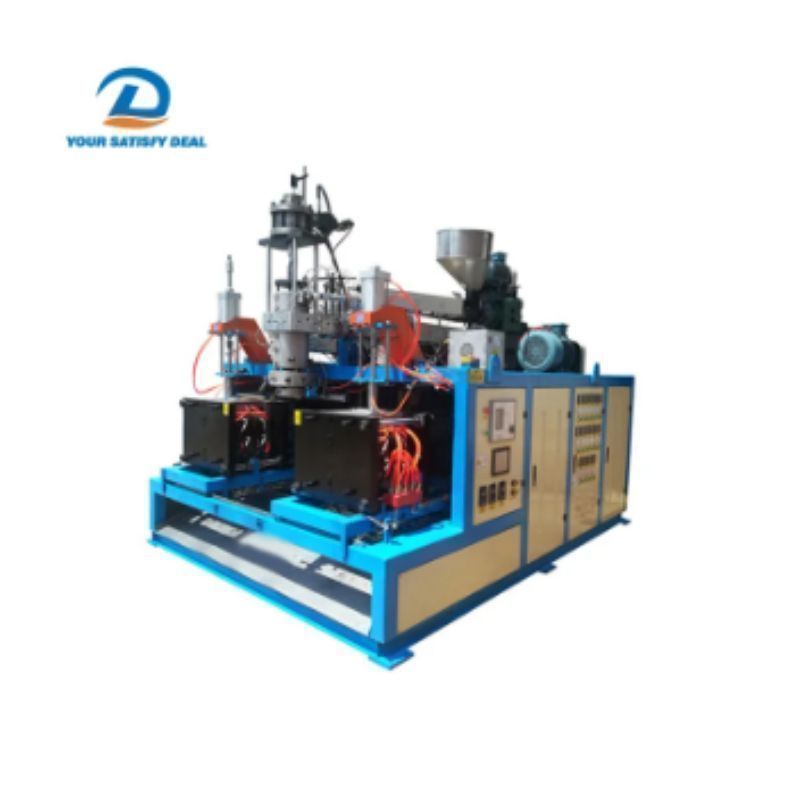

The 5-liter plastic oil drum extrusion blow molding machine can be equipped with 1 or 2 screws to accommodate a wider range of product applications and is suitable for bottles of different capacities. It can also be used with related extrusion systems, employing visible stripe die heads and multi-layer co-extrusion die heads to meet the production needs of different functional products.
The 5-liter plastic oil drum extrusion blow molding machine can be equipped with 1 or 2 screws to accommodate a wider range of product applications and is suitable for bottles of different capacities. It can also be used with related extrusion systems, employing visible stripe die heads and multi-layer co-extrusion die heads to meet the production needs of different functional products.
1. Economical equipment with low cost, suitable for customers with limited investment and those just entering the industry.
2. Different die heads can be configured according to product characteristics for customers to choose from.

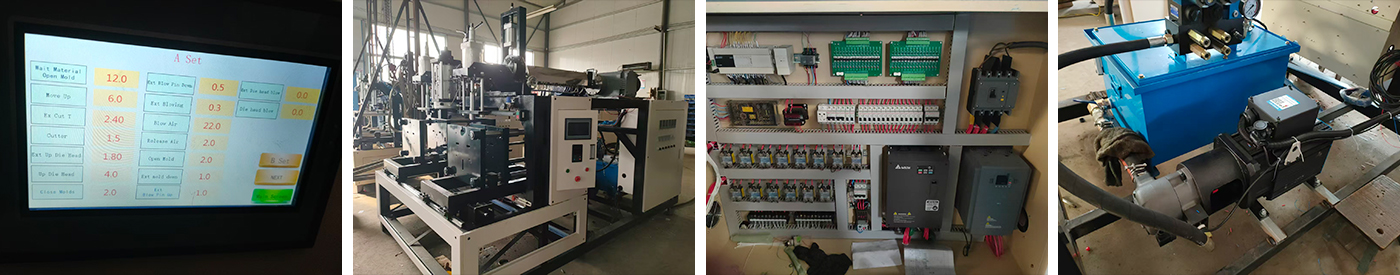

3. Touch screen human-machine interface, easy to operate and set up.
4. The machine is mainly pneumatically operated, with a hydraulic clamping system, resulting in lower costs.
|
Model NO. |
YSD-PY5L |
Raw Material |
HDPE |
|
Making Method of Parison |
Extrusion-Blow Molding |
Automation |
Semi Automatic |
|
Computerized |
Computerized |
Certification |
CE, ISO9001:2008, Ysd |
|
After-sales Service |
24 Hours |
Machine Type |
High Speed Plastic Bottle Making Machine |
|
Control Mode |
PLC |
Motor Power |
11kw |
|
Clamping Force |
1600kN |
Blow Moulding Type |
Extrusion Blow Moulding |
|
Auto Deflashing |
Available |
Output(Dry Cycle) |
200 PC/Hr; |
|
Die Head Option |
Single, Double, Tri-Head, Tetra-Head |
Production Usage |
Bottle, Toy, etc |
|
Max Container Capacity |
5L |
Transport Package |
Wooden Case |
|
Specification |
3100×1750×1800mm |
Trademark |
YSD |
|
Origin |
China |
Production Capacity |
500 |
|
Maximum product volume (L) |
5L |
|
Method of removing head and tail material |
Screw type bottom discharge |
|
Number of die heads |
1 |
|
Center distance |
130 |
|
Number of molds (sets) |
2 |
|
Production capacity (empty cycle) pc/h |
350 |
|
Clamping method |
Hydraulic |
|
Screw diameter (mm) |
65 |
|
Screw length-to-diameter ratio (L/D) |
1:25 |
|
Maximum HDPE extrusion rate (kg/h) |
35 |
|
Material pipe cutting method |
Hot cutting knife |
|
Screen changer |
Manual screen changer |
|
Maximum mold size (thickness × width × height) mm |
220×300×350 |
|
Blowing pressure (MPa) |
0.4-0.6 |
|
Gas consumption (m³/min) |
0.6 |
|
Extruder motor power (KW) |
11 |
|
Extruder heating power (KW) |
12 |
|
Total power (KW) |
33 |
|
Overall dimensions (length × width × height) mm |
3100×1850×2200 |
|
Total weight (T) |
2.5 |
|
Control method |
PLC computer control |
|
Suitable materials |
PE/PP |
|
Voltage |
380V 50hz 3phase voltage |
