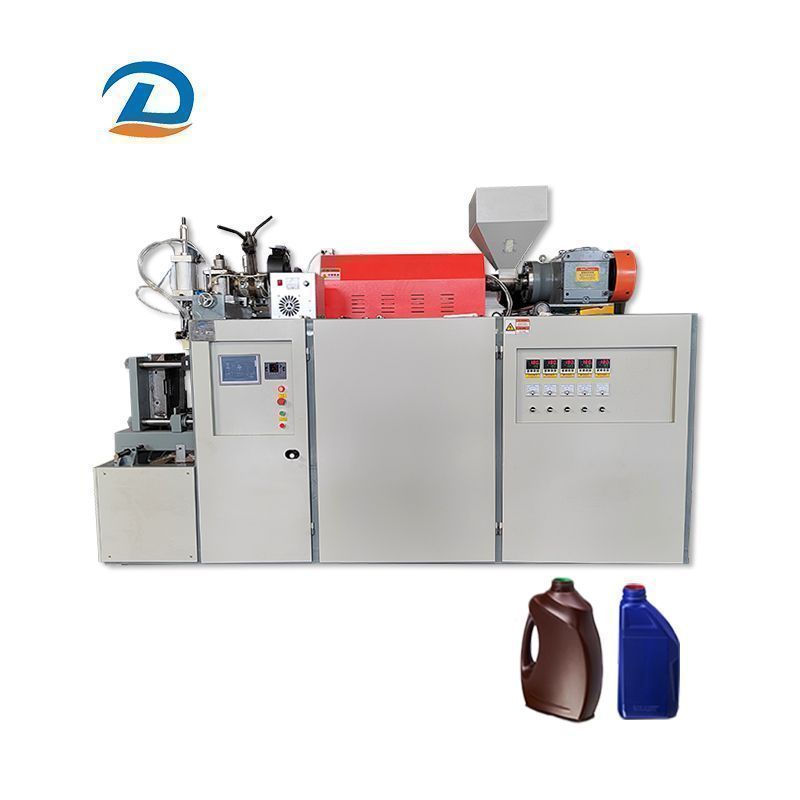

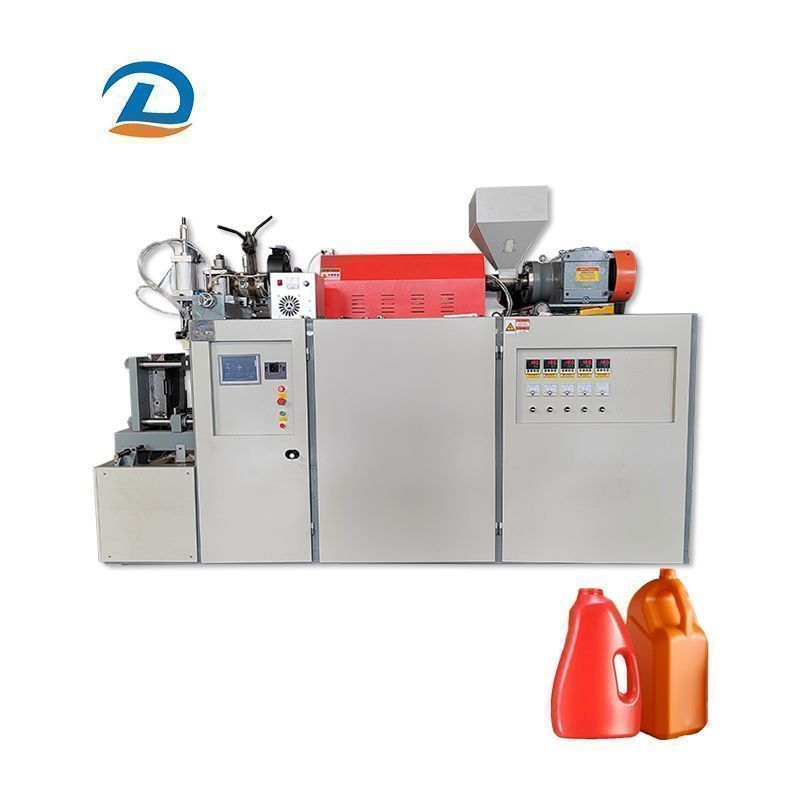

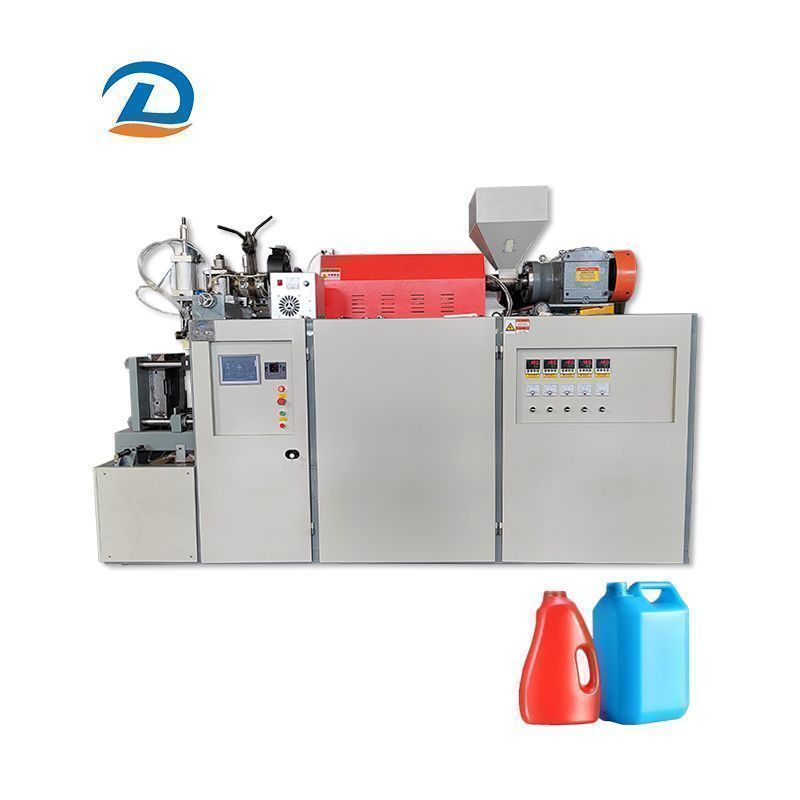

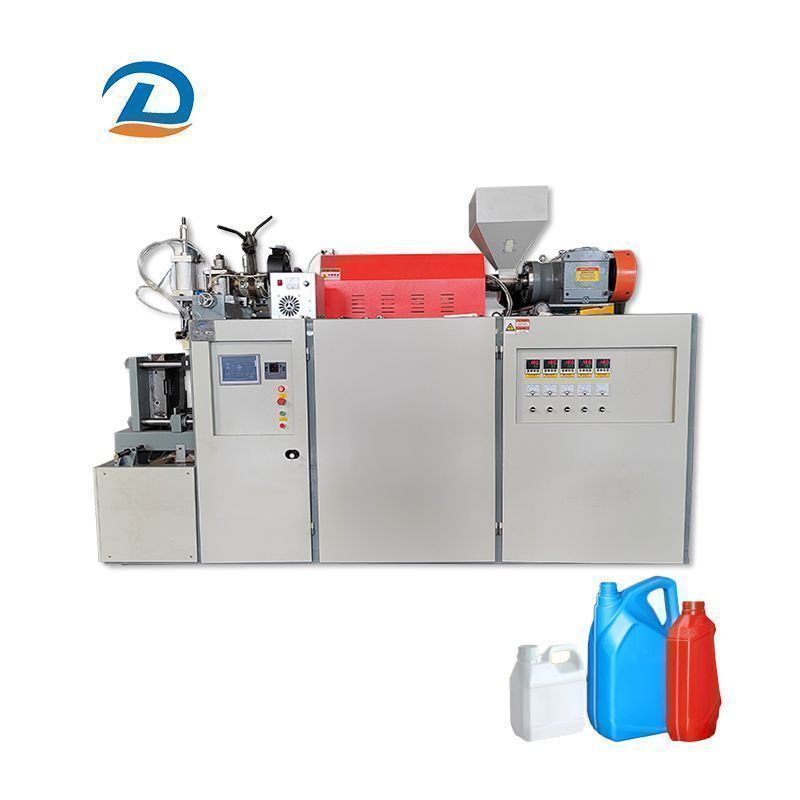

Factory Sale High Quality High Speed Semi-Automatic Blow Molding Machine is a cost-effective semi-automatic machine capable of producing 1-50L hollow plastic containers.
Factory Sale High Quality High Speed Semi-Automatic Blow Molding Machine is a cost-effective semi-automatic machine capable of producing 1-50L hollow plastic containers. It is a global bestseller and has received numerous repeat orders from customers. It features PLC control and can be customized with different languages and voltage settings according to customer requirements.

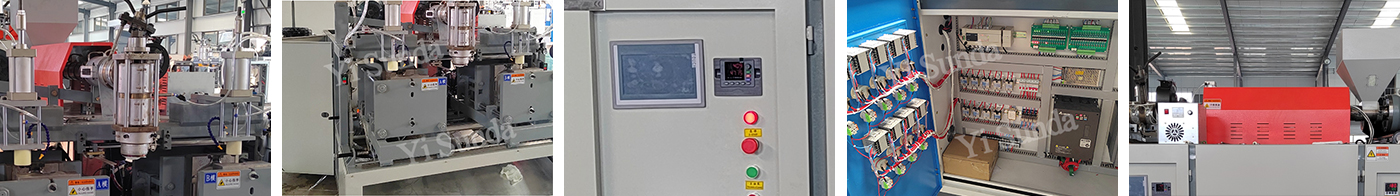

1.Die heads are used for extruding material tubes. The number of die heads can be selected according to the size of the product and the required output.
2.Its main function is to execute mould carriage up action, mould closing clamping parison action. mould carriage down action supply clamping force to offset air blowing pressure.mould open for product de-molding.
3.PLC touch screen, machine operation is controlled by PLC, easy to operate. PLC language can be selected upon request
4.Electrical system, including circuit switches,frequency converters and servo controllers of the entire machine
5.The screw is used to heat raw materials and is equipped with a heating coil. After the raw materials enter the screw, they are heated and flow into the die.
|
Model NO. |
YSD-PY5L |
Raw Material |
HDPE |
|
Making Method of Parison |
Extrusion-Blow Molding |
Automation |
Automatic |
|
Computerized |
Computerized |
Certification |
CE, ISO9001:2008, Ysd |
|
After-sales Service |
24 Hours |
Machine Type |
High Speed Plastic Bottle Making Machine |
|
Control Mode |
PLC |
Motor Power |
11kw |
|
Clamping Force |
1600kN |
Blow Moulding Type |
Extrusion Blow Moulding |
|
Auto Deflashing |
Available |
Output(Dry Cycle) |
750 PC/Hr; |
|
Die Head Option |
Single, Double, Tri-Head, Tetra-Head |
Production Usage |
Bottle, Toy, etc |
|
Max Container Capacity |
250L |
Transport Package |
Wooden Case |
|
Specification |
2800*1800*2000mm |
Trademark |
YSD |
|
Origin |
China |
Production Capacity |
500 |
|
Model number |
YSD-PY5L |
|
Maximum product volume L |
standard1.5L |
|
Mould quantity (pay) |
2 |
|
Yield (empty cycle)pc/h |
600 |
|
Screw diameter mm |
55 |
|
Length-diameter ratio of screw L/D |
1:25 |
|
HDPE maximum extrusion capacity kg/h |
25 |
|
Material pipe cutting mode |
Hot knife |
|
Maximum mold size (thickness * width * height)mm |
220*230*400 |
|
Blowing pressure Mpa |
0.4-0.6 |
|
Gas consumption m3/min |
0.6 |
|
Extruder power KW |
7.5 |
|
Extruder heating power KW |
8 |
|
Total power KW |
16.5 |
|
Overall dimension mm (length * width * height) |
2600*1600*1900 |
|
Gross weight kg |
1500 |
|
Control mode |
PLC Computer control |
|
Suitable material |
PE/PP |
“ Customized services are superb! The manufacturer optimized the mold design based on our bottle type requirements, directly enhancing the competitiveness of the product by one level. “
“ This machine fully complies with international standards and has helped us win multiple major overseas clients. “
“ Blow molding machines have a high degree of automation, simple and easy to operate, significantly reducing labor costs, and production efficiency is higher than expected “
“ The equipment has high molding accuracy, and the blow molded products have uniform wall thickness and smooth appearance, fully meeting our quality requirements for mass production “
“ Super stable operation, continuous operation without faults for several months, low maintenance costs, and cost-effective long-term use “
“ In response to our special product requirements, the manufacturer provides customized blow molding solutions that are adaptable and practical “
We offer a wide range of blow molding machines, extrusion blow molding machines, plastic blow molding machines and bottle blow making machines.
Equipped with a professional technical team to provide one-on-one services throughout the entire chain of "requirement communication - solution design - equipment research and development - installation and debugging - after-sales maintenance"
