JerryCan

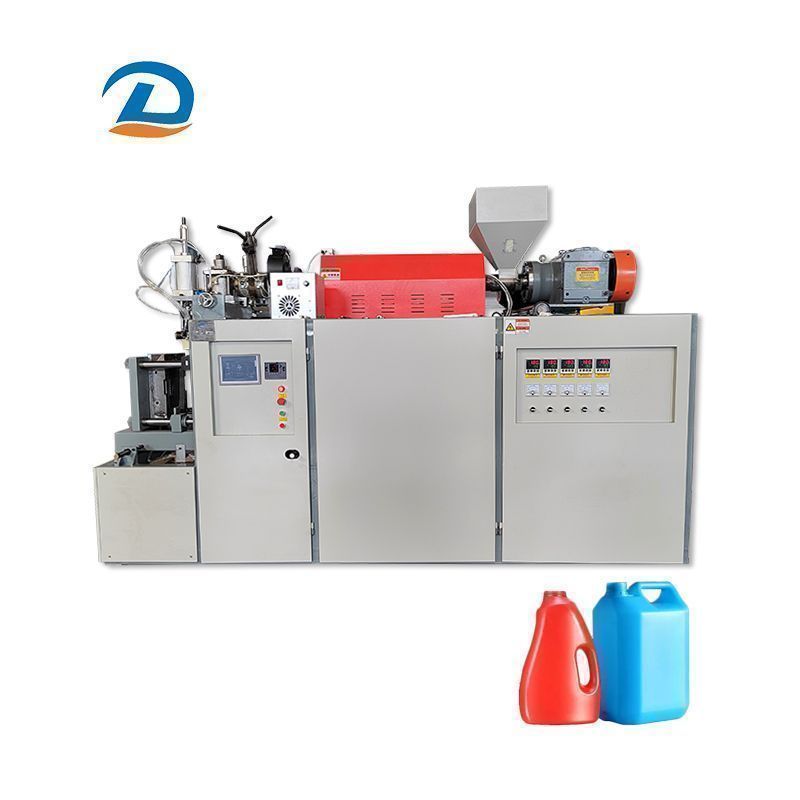

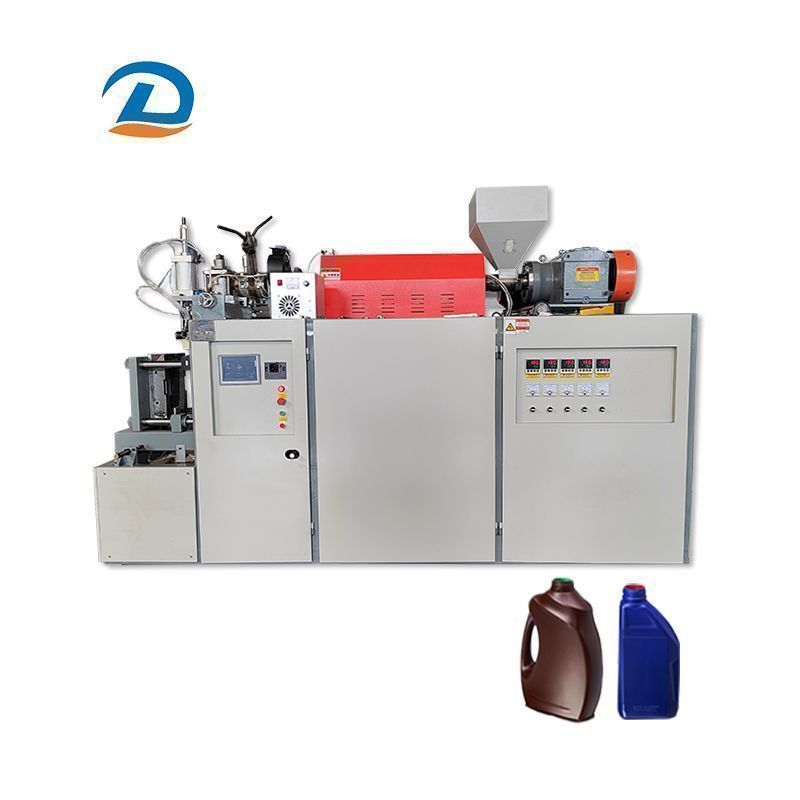

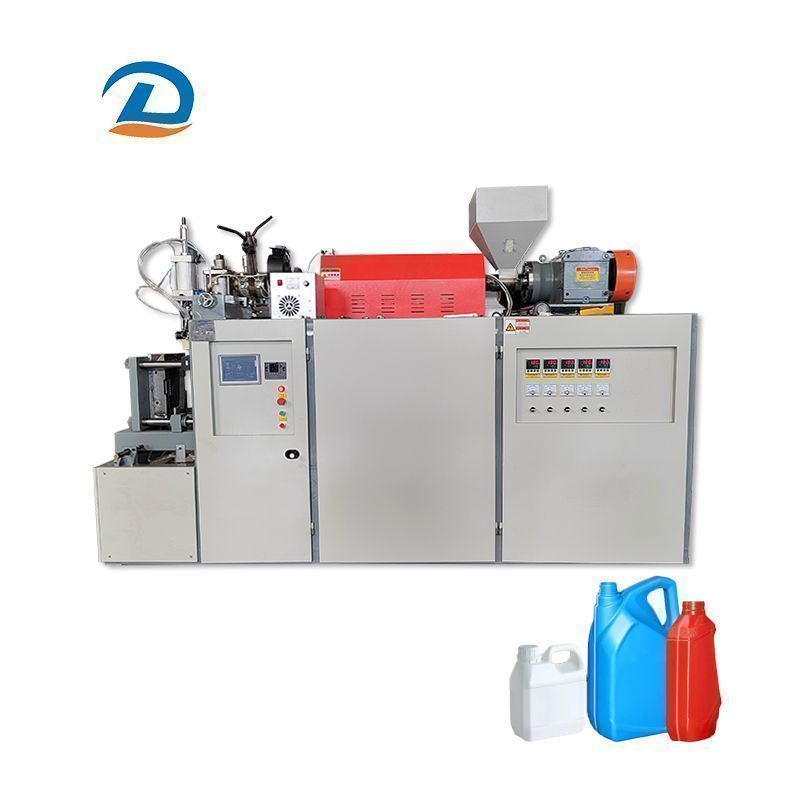

This extrusion blow moulding machine is designed for manufacturing HDPE and PP plastic water tanks and bottles with high efficiency and stable performance.
This extrusion blow moulding machine is designed for manufacturing HDPE and PP plastic water tanks and bottles with high efficiency and stable performance. Equipped with an advanced extrusion system and precise temperature control, it ensures uniform wall thickness and excellent product strength. The machine supports automatic operation, reducing labor costs while improving production consistency. Suitable for various bottle sizes and industrial containers, it offers flexible mold compatibility and energy-saving performance. With reliable structure and easy maintenance, this blow molding machine is an ideal solution for modern plastic bottle and water tank production manufacturers.

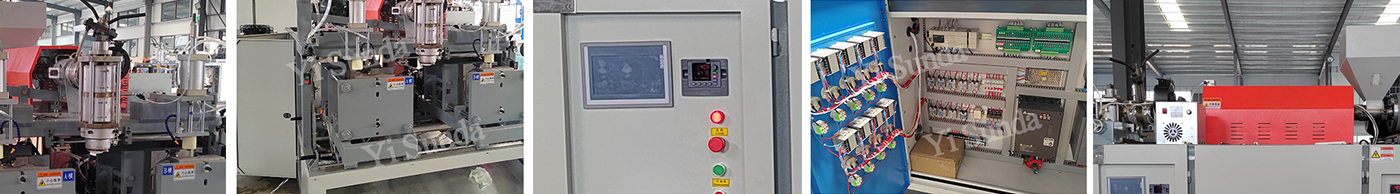

1. Die heads are used for extruding material tubes. The number of die heads can be selected according to the size of the product and the required output.
2. Its main function is to execute mould carriage up action, mould closing clamping parison action. mould carriage down action supply clamping force to offset air blowing pressure.mould open for product de-molding.
3. PLC touch screen, machine operation is controlled by PLC, easy to operate. PLC language can be selected upon request
4. Electrical system, including circuit switches,frequency converters and servo controllers of the entire machine
5. The screw is used to heat raw materials and is equipped with a heating coil. After the raw materials enter the screw, they are heated and flow into the die.
|
Model NO. |
YSD-PY5L |
Raw Material |
HDPE |
|
Making Method of Parison |
Extrusion-Blow Molding |
Automation |
Automatic |
|
Computerized |
Computerized |
Certification |
CE, ISO9001:2008, Ysd |
|
After-sales Service |
24 Hours |
Machine Type |
High Speed Plastic Bottle Making Machine |
|
Control Mode |
PLC |
Motor Power |
11kw |
|
Clamping Force |
1600kN |
Blow Moulding Type |
Extrusion Blow Moulding |
|
Auto Deflashing |
Available |
Output(Dry Cycle) |
750 PC/Hr; |
|
Die Head Option |
Single, Double, Tri-Head, Tetra-Head |
Production Usage |
Bottle, Toy, etc |
|
Max Container Capacity |
250L |
Transport Package |
Wooden Case |
|
Specification |
2800*1800*2000mm |
Trademark |
YSD |
|
Origin |
China |
Production Capacity |
500 |
|
Model number |
YSD-PY5L |
|
Maximum product volume L |
standard1.5L |
|
Mould quantity (pay) |
2 |
|
Yield (empty cycle)pc/h |
600 |
|
Screw diameter mm |
55 |
|
Length-diameter ratio of screw L/D |
1:25 |
|
HDPE maximum extrusion capacity kg/h |
25 |
|
Material pipe cutting mode |
Hot knife |
|
Maximum mold size (thickness * width * height)mm |
220*230*400 |
|
Blowing pressure Mpa |
0.4-0.6 |
|
Gas consumption m3/min |
0.6 |
|
Extruder power KW |
7.5 |
|
Extruder heating power KW |
8 |
|
Total power KW |
16.5 |
|
Overall dimension mm (length * width * height) |
2600*1600*1900 |
|
Gross weight kg |
1500 |
|
Control mode |
PLC Computer control |
|
Suitable material |
PE/PP |
