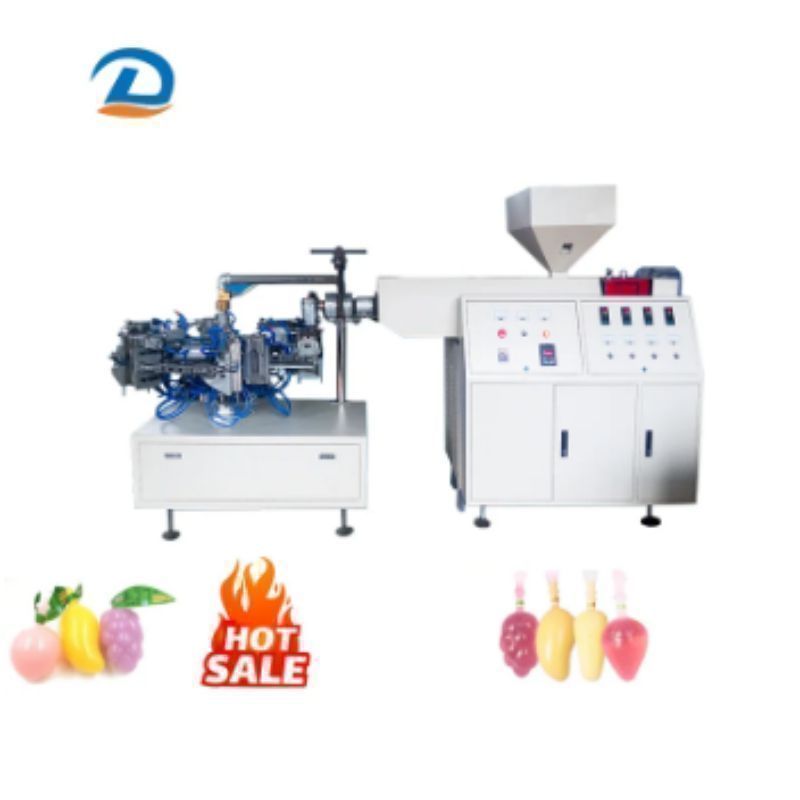

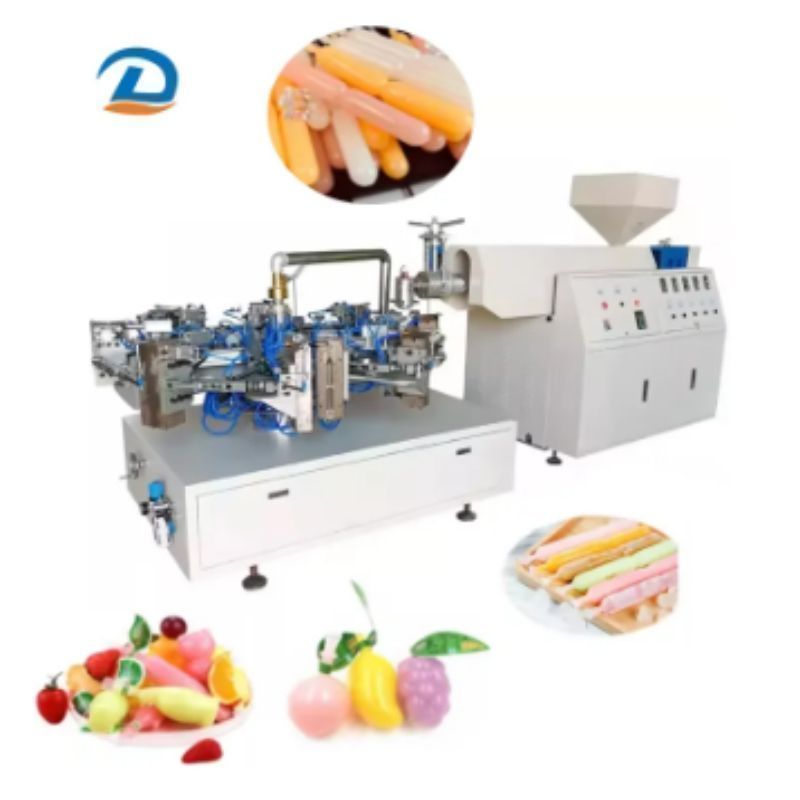

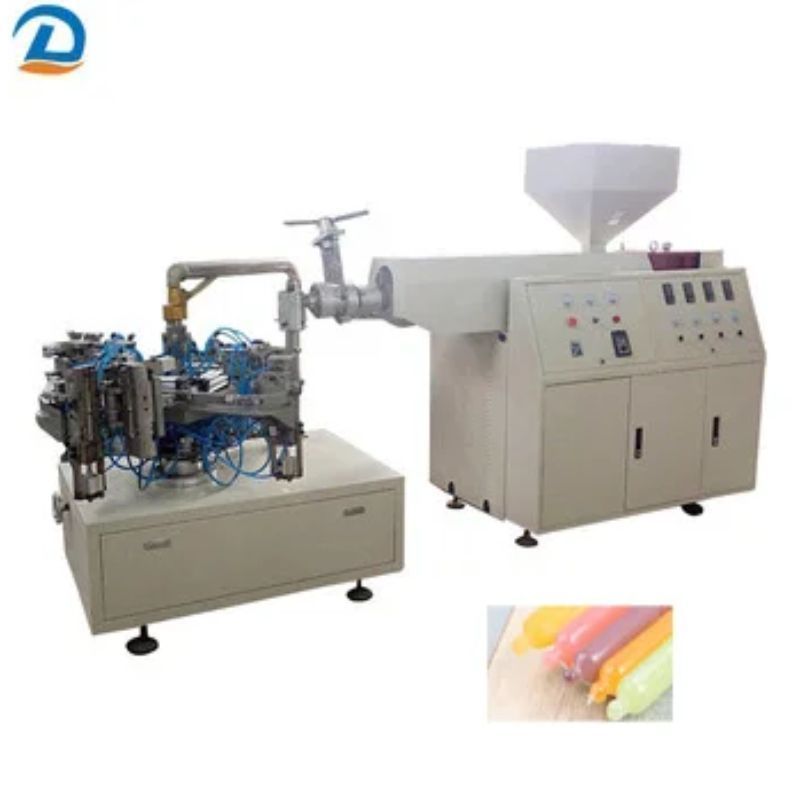

This rotary blow molding machine is designed for efficient and stable production of plastic droppers used in medical, personal care, and laboratory applications. Its multi-station rotary system integrates extrusion, blowing, cooling, and take-out into a continuous process, improving production efficiency and consistency.
This rotary blow molding machine is designed for efficient and stable production of plastic droppers used in medical, personal care, and laboratory applications. Its multi-station rotary system integrates extrusion, blowing, cooling, and take-out into a continuous process, improving production efficiency and consistency. The machine ensures precise wall thickness, accurate dropper tips, and good surface quality. Easy operation, quick mold changeover, and reliable performance make it a practical solution for high-volume dropper manufacturing.
High production efficiency The multi-station rotary structure enables extrusion, blowing, cooling, and take-out to operate at the same time, greatly improving overall output.
Stable and consistent product quality Smooth rotary operation and precise mold control ensure uniform wall thickness, accurate dimensions, and reliable repeatability.
Compact and space-saving design High capacity is achieved within a smaller footprint, making better use of factory space.
Easy operation and fast changeover User-friendly controls and quick mold replacement reduce setup time and downtime.
Wide material compatibility Suitable for common plastics such as PP and PE, meeting different application requirements.
Energy-efficient and cost-effective Optimized mechanical design helps lower energy consumption while maintaining stable long-term performance.
|
Model NO. |
YSD-XZQ4/6/8 |
Raw Material |
HDPE/PP/LDPE |
|
Making Method of Parison |
Extrusion-Blow Molding |
Automation |
Full Automatic |
|
Computerized |
Computerized |
Certification |
CE, ISO9001:2008, Ysd |
|
After-sales Service |
24 Hours |
Machine Type |
High Speed Plastic Bottle Making Machine |
|
Control Mode |
PLC |
Motor Power |
11kw |
|
Total power |
17.5kw |
Blow Moulding Type |
Extrusion Blow Moulding |
|
Auto Deflashing |
Available |
Output(Dry Cycle) |
3600PC/Hr; |
|
Die Head Option |
Single, Double, Tri-Head, Tetra-Head |
Production Usage |
Bottle, Toy, etc |
|
Max Container Capacity |
250L |
Transport Package |
Wooden Case |
|
Specification |
2800*1800*2000mm |
Trademark |
YSD |
|
Origin |
China |
Production Capacity |
500 |
|
MODEL |
YSD-XZQ-8 |
|
Quantity of mould |
8 sets |
|
Production capacity |
4800/h |
|
Screwed diameter |
55mm |
|
Screwed diameter ratio |
1:25L/D |
|
HDPE Max Output |
25kg/h |
|
Main motor power |
7.5KW |
|
Rated power |
11KW |
|
Total power |
17.5KW |
|
Dimension mm（L X W X H） |
3300*1200*1900 |
|
Weight |
1.5 T |
|
Suitable material |
LDPE/PE/PP |
|
Input voltage |
380V 50Hz 3Phase |
“ Customized services are superb! The manufacturer optimized the mold design based on our bottle type requirements, directly enhancing the competitiveness of the product by one level. “
“ This machine fully complies with international standards and has helped us win multiple major overseas clients. “
“ Blow molding machines have a high degree of automation, simple and easy to operate, significantly reducing labor costs, and production efficiency is higher than expected “
“ The equipment has high molding accuracy, and the blow molded products have uniform wall thickness and smooth appearance, fully meeting our quality requirements for mass production “
“ Super stable operation, continuous operation without faults for several months, low maintenance costs, and cost-effective long-term use “
“ In response to our special product requirements, the manufacturer provides customized blow molding solutions that are adaptable and practical “
We offer a wide range of blow molding machines, extrusion blow molding machines, plastic blow molding machines and bottle blow making machines.
Equipped with a professional technical team to provide one-on-one services throughout the entire chain of "requirement communication - solution design - equipment research and development - installation and debugging - after-sales maintenance"
