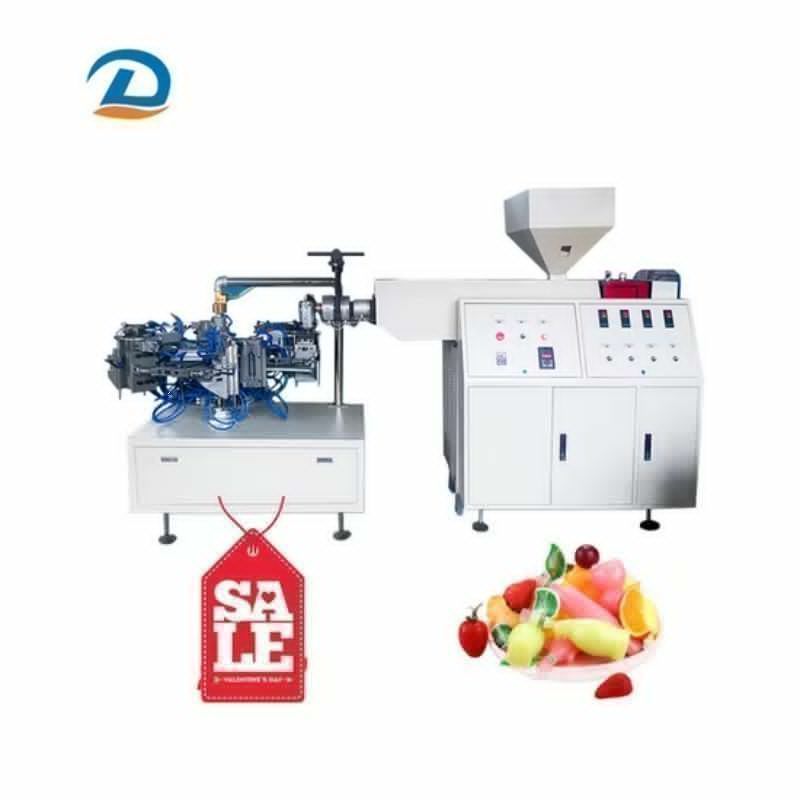

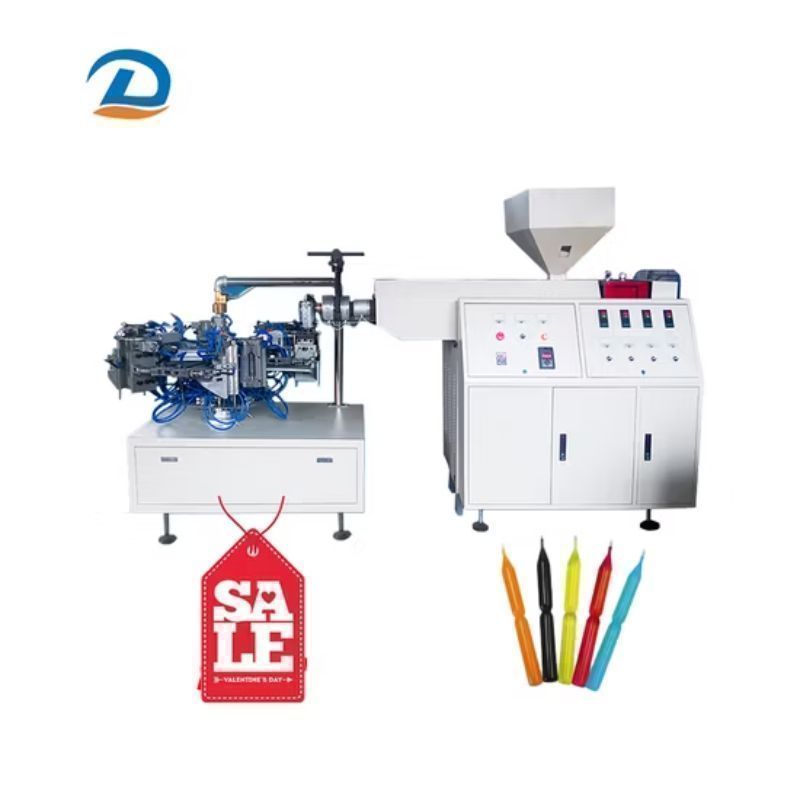

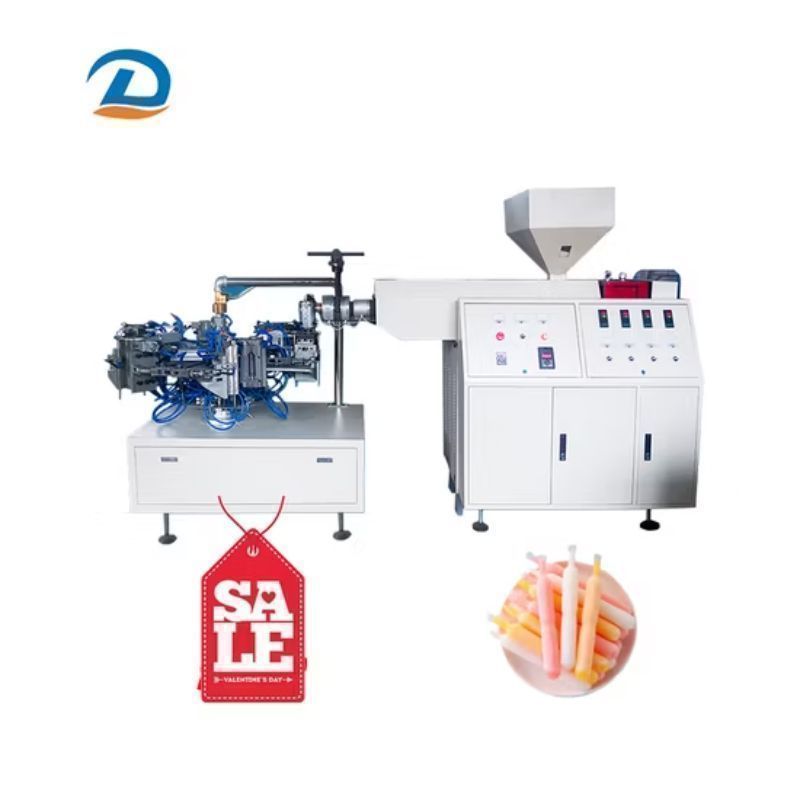

Blow Molding Machine for Popsicle Making Machine Ice Freeze Pop Bottle Working principle: one step " extrusion-blow molding " forming. plastic blow molding machine It suitable for LDPE, HDPE, PP, PS raw material etc.
Blow Molding Machine for Popsicle Making Machine Ice Freeze Pop Bottle Working principle: one step " extrusion-blow molding " forming. plastic blow molding machine It suitable for LDPE, HDPE, PP, PS raw material etc. plastic extruder adopt frequency conversion energy-saving motor to adjust the speed, not only can achieve the requirement of different product by the range of the adjustment speed, but also the extrusion parison is quite stable, ensure the unity of the product weight. The thermoplastic by the melting and plasticizing of the extruder through the extruder machine's head form the extrusion parison, and then the parison go into the mould, entering the compressed air, blow up the parison, cooling and forming, take the product out from the mould, knock out the nozzle, the circle is complete..

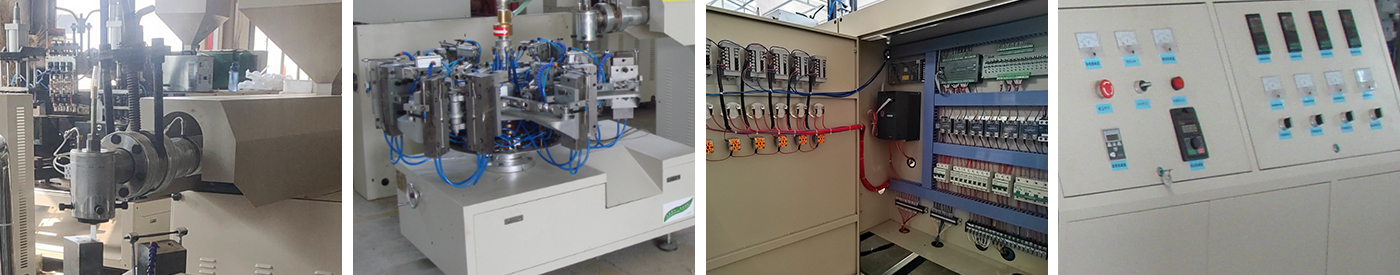

1.The die head is used for extruding tubular materials..
2.he mold can be divided into 2-station, 4-station, 6-station, 8-station, etc., depending on production capacity and product requirements. 2-cavity molds are also available.
3.The control panel is simple to operate, easy to use, and durable
4.Electrical system, including circuit switches,frequency converters and servo controllers of the entire machine
|
Model NO. |
YSD-XZB |
Raw Material |
PE |
|
Making Method of Parison |
Extrusion-Blow Molding |
Automation |
Automatic |
|
Computerized |
Computerized |
Certification |
CE |
|
After-sales Service |
1 Year |
Material |
PP PE |
|
Product |
Ice Lolly Bag |
Blowing Way |
Air |
|
Drive |
Motor |
Transport Package |
Packed in Wooden Cases |
|
Specification |
3000*1100*1800mm |
Trademark |
CE, FDA, ISO |
|
Origin |
Hebei Province, China |
Production Capacity |
25 Sets/Month |
|
Technical parameter |
YSD-XZB/XSJ-1 |
YSD-XZB/XSJ-2 |
YSD-XZB/XSJ-3 |
|
Equipment composition |
4-working-position blow machine with 45 extruder machine |
6-working-position blow machine with 55 extruder machine |
8-working-position blow machine with 65 extruder machine |
|
Max volume of the product ml |
800 |
1200 |
1500 |
|
Max diameter of the product mm |
80 |
100 |
110 |
|
Mould dimension ( L* W * H ) mm |
120×118×300 |
120×118×300 |
120×118×300 |
|
Production capacity PCS / day |
15000-80000 |
20000-120000 |
20000-160000 |
|
Gas consumption quantity m3 / min |
0.4 |
||
|
Screw diameter mm |
45 |
55 |
65 |
|
Long radius rate |
|
25:01:00 |
|
|
Plasticizing capacity kg / h |
25 |
40 |
60 |
|
Electric machinery power kw |
5.5 |
7.5 |
11 |
|
Total power kw |
14 |
17 |
22 |
|
Weight kg |
1500 |
1800 |
2000 |
|
Appearance dimension ( L * W * H ) mm |
3000×1200×1500 |
3300×1200×1500 |
3400×1300×1600 |
|
The suitable raw material |
PE / PP / PS / PVC |
||
|
The method of adjusting the speed |
Frequency conversion |
||
