Ice Lollipop

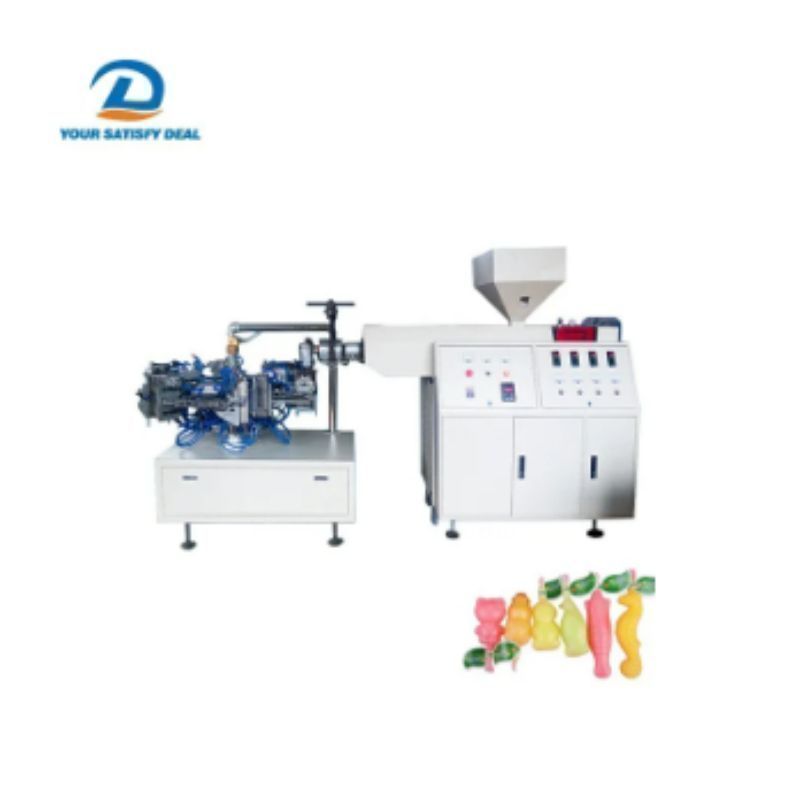

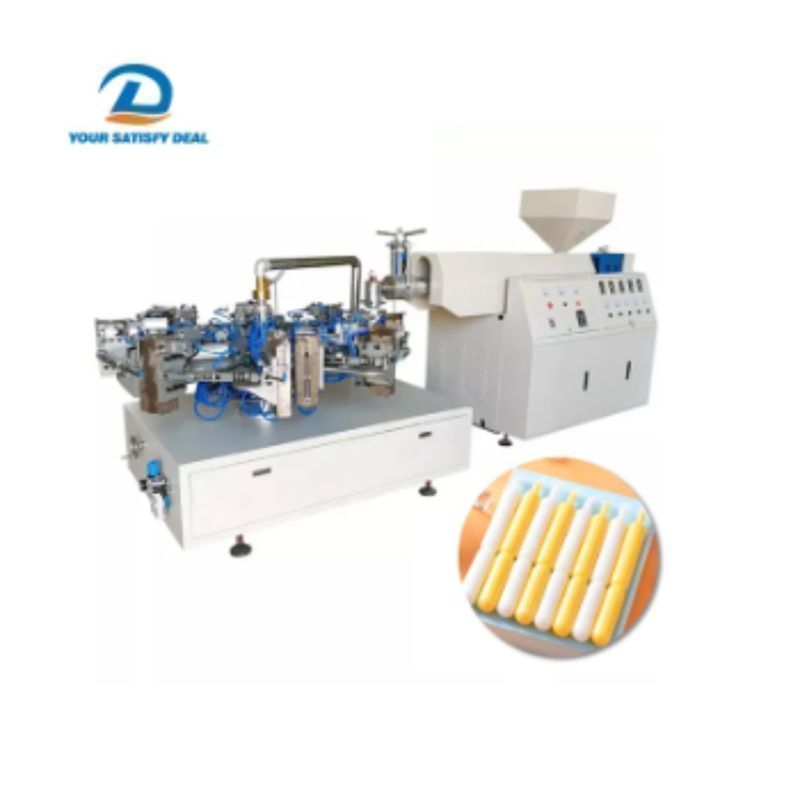

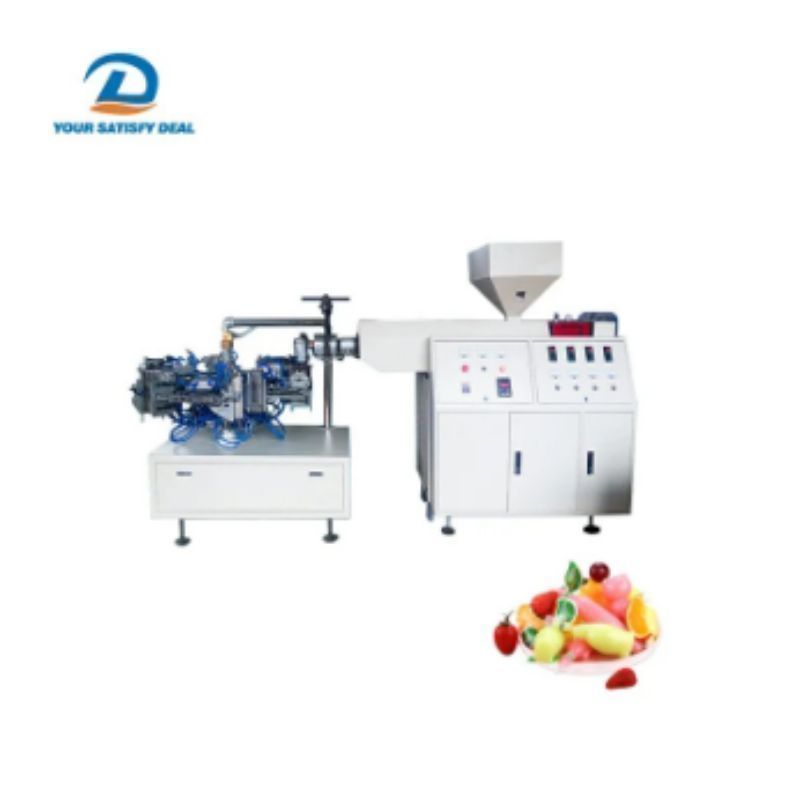

This high-speed, six-station rotary automatic blow molding machine is specifically designed for producing popsicle and ice cream packaging tubes, and is suitable for PP and HDPE materials.
This high-speed, six-station rotary automatic blow molding machine is specifically designed for producing popsicle and ice cream packaging tubes, and is suitable for PP and HDPE materials. It features a six-station rotary structure, ensuring continuous and stable operation and high production capacity. The fully automatic control system helps reduce labor costs and improve production efficiency. The resulting packaging tubes have a smooth surface and uniform wall thickness, meeting food-grade production requirements. Furthermore, the machine is easy to operate and maintain, making it an ideal choice for flexible tube production.
1.This machine has 6 workstations, operates stably, and has a high output, producing 3600 ice cream bar casings per hour.
2.The buy hollow extrusion blow molding machine adopts a hydraulic drive system, which can improve the automation level of the equipment, especially the process of the Hollow blow molding machine is more complicated, and the hydraulic drive system can also realize the processing action in an orderly manner
3.The machine is suitable for both PP and HDPE materials, ensuring stable molding and consistent product quality.
4.The automatic control system reduces manual operation, helping to save on labor costs.
5.The finished tubes have a smooth surface and uniform wall thickness, meeting common food-grade packaging requirements.
|
Model NO. |
YSD-XZQ6 |
Raw Material |
HDPE |
|
Making Method of Parison |
Extrusion-Blow Molding |
Automation |
Full Automatic |
|
Computerized |
Computerized |
Certification |
CE, ISO9001:2008, Ysd |
|
After-sales Service |
24 Hours |
Machine Type |
High Speed Plastic Bottle Making Machine |
|
Control Mode |
PLC |
Motor Power |
11kw |
|
Total power |
17.5kw |
Blow Moulding Type |
Extrusion Blow Moulding |
|
Auto Deflashing |
Available |
Output(Dry Cycle) |
3600PC/Hr; |
|
Die Head Option |
Single, Double, Tri-Head, Tetra-Head |
Production Usage |
Bottle, Toy, etc |
|
Max Container Capacity |
250L |
Transport Package |
Wooden Case |
|
Specification |
2800*1800*2000mm |
Trademark |
YSD |
|
Origin |
China |
Production Capacity |
500 |
|
MODEL |
YSD-XZQ-6 |
|
Quantity of mould |
6 sets |
|
Production capacity |
1500/h |
|
Screwed diameter |
55mm |
|
Screwed diameter ratio |
1:25L/D |
|
HDPE Max Output |
25kg/h |
|
Main motor power |
7.5KW |
|
Rated power |
11KW |
|
Total power |
17.5KW |
|
Dimension mm（L X W X H） |
3300*1200*1900 |
|
Weight |
1.5 T |
|
Suitable material |
LDPE/PE/PP |
|
Input voltage |
380V 50Hz 3Phase |
