Ice Lollipop

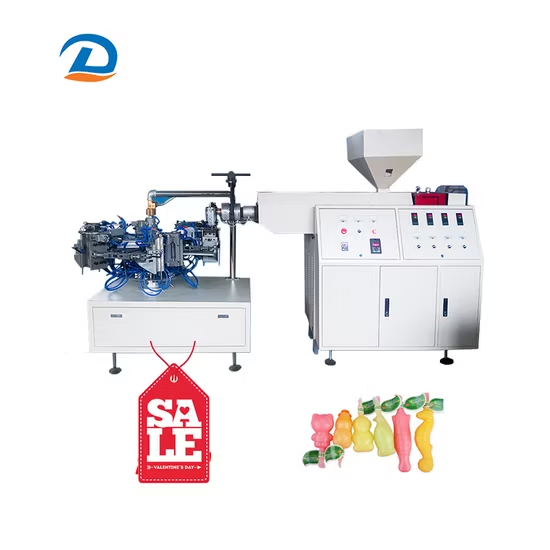

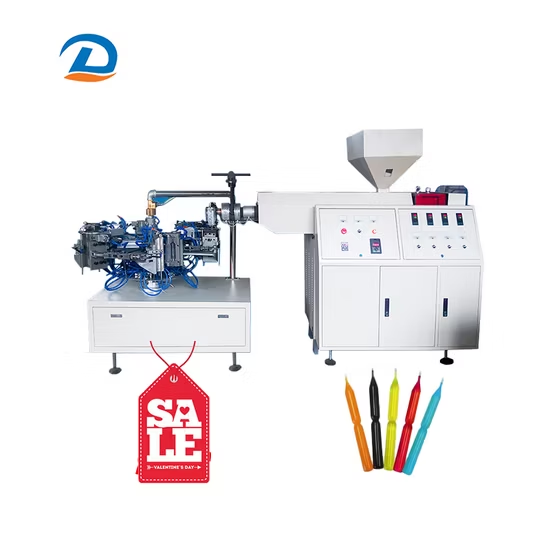

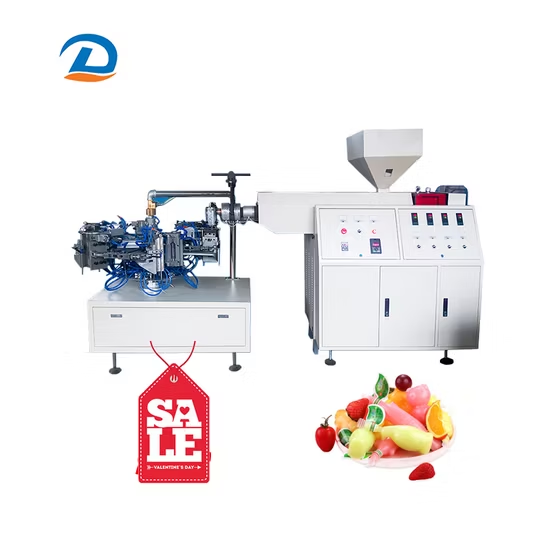

Our rotary blow molding machine is designed for the efficient production of plastic toolboxes, long plastic tubes, washing machine drain hoses, and other irregular or elongated hollow products. With advanced rotary clamping technology and stable extrusion performance, the machine ensures uniform wall thickness, high strength, and excellent surface quality.
Our rotary blow molding machine is designed for the efficient production of plastic toolboxes, long plastic tubes, washing machine drain hoses, and other irregular or elongated hollow products. With advanced rotary clamping technology and stable extrusion performance, the machine ensures uniform wall thickness, high strength, and excellent surface quality.
Ideal for manufacturing complex shapes and long-length products, this machine offers continuous operation with high output and precision. It supports a wide range of materials such as HDPE, LDPE, and PP, meeting diverse industrial and household product requirements.
Featuring a high level of automation, energy-saving design, and user-friendly control system, the rotary blow molding machine helps reduce labor costs while maximizing productivity. It is a reliable solution for manufacturers seeking flexibility, efficiency, and consistent product quality.

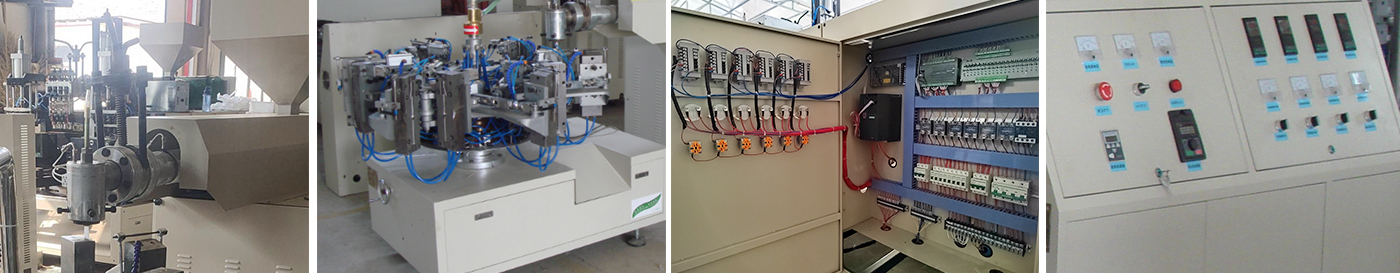

1. The die head is used for extruding tubular materials..
2. The mold can be divided into 2-station, 4-station, 6-station, 8-station, etc., depending on production capacity and product requirements. 2-cavity molds are also available.
3. The control panel is simple to operate, easy to use, and durable
4. Electrical system, including circuit switches,frequency converters and servo controllers of the entire machine
|
Model NO. |
YSD-XZB |
Raw Material |
PE |
|
Making Method of Parison |
Extrusion-Blow Molding |
Automation |
Automatic |
|
Computerized |
Computerized |
Certification |
CE |
|
After-sales Service |
1 Year |
Material |
PP PE |
|
Product |
Ice Lolly Bag |
Blowing Way |
Air |
|
Drive |
Motor |
Transport Package |
Packed in Wooden Cases |
|
Specification |
3000*1100*1800mm |
Trademark |
CE, FDA, ISO |
|
Origin |
Hebei Province, China |
Production Capacity |
25 Sets/Month |
|
Technical parameter |
YSD-XZB/XSJ-1 |
YSD-XZB/XSJ-2 |
YSD-XZB/XSJ-3 |
|
Equipment composition |
4-working-position blow machine with 45 extruder machine |
6-working-position blow machine with 55 extruder machine |
8-working-position blow machine with 65 extruder machine |
|
Max volume of the product ml |
800 |
1200 |
1500 |
|
Max diameter of the product mm |
80 |
100 |
110 |
|
Mould dimension ( L* W * H ) mm |
120×118×300 |
120×118×300 |
120×118×300 |
|
Production capacity PCS / day |
15000-80000 |
20000-120000 |
20000-160000 |
|
Gas consumption quantity m3 / min |
0.4 |
||
|
Screw diameter mm |
45 |
55 |
65 |
|
Long radius rate |
|
25:01:00 |
|
|
Plasticizing capacity kg / h |
25 |
40 |
60 |
|
Electric machinery power kw |
5.5 |
7.5 |
11 |
|
Total power kw |
14 |
17 |
22 |
|
Weight kg |
1500 |
1800 |
2000 |
|
Appearance dimension ( L * W * H ) mm |
3000×1200×1500 |
3300×1200×1500 |
3400×1300×1600 |
|
The suitable raw material |
PE / PP / PS / PVC |
||
|
The method of adjusting the speed |
Frequency conversion |
||
