Stackable Barrel

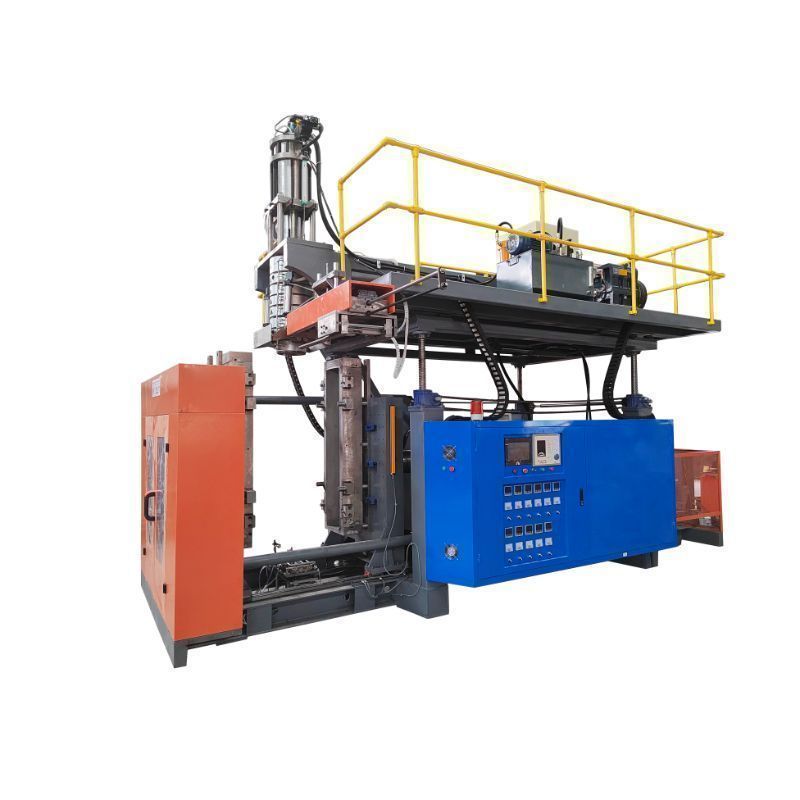

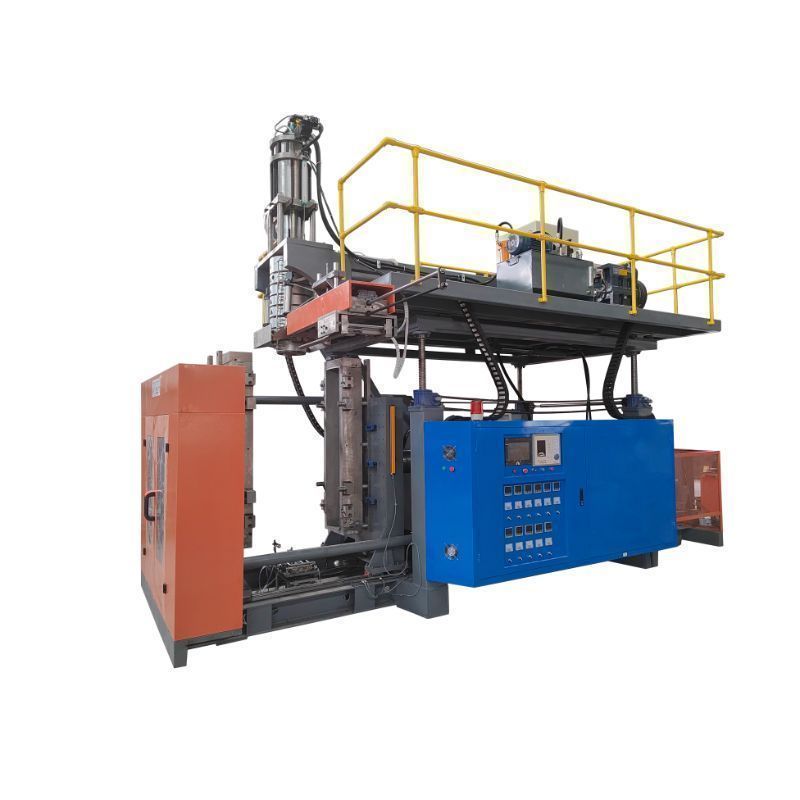

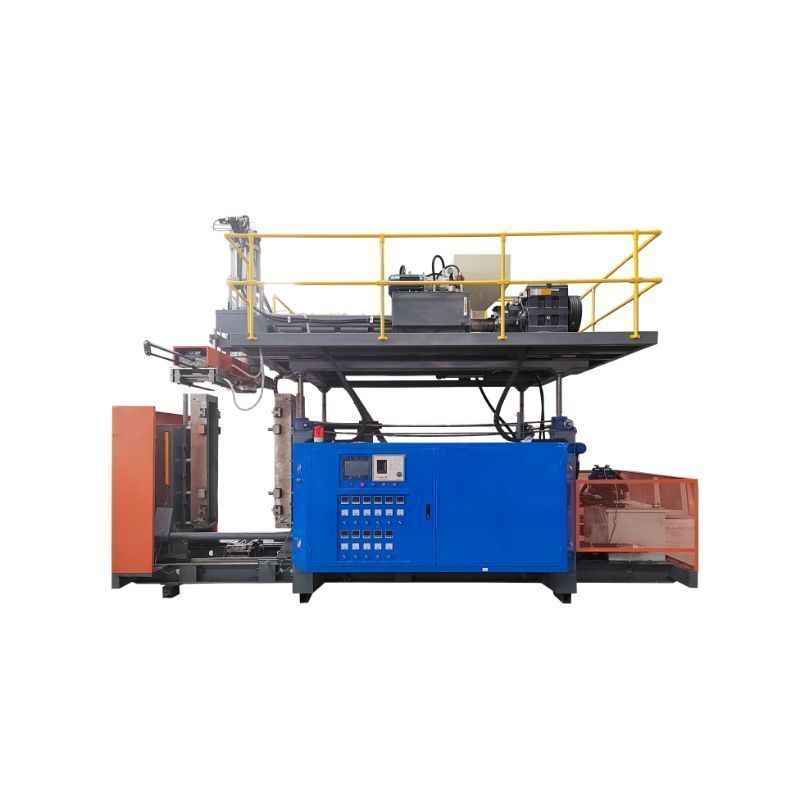

Our large blow molding machines are specially designed for manufacturing plastic mannequins, plastic models, and other oversized hollow products. With advanced extrusion systems and high-strength clamping structures, the machine ensures excellent stability, uniform wall thickness, and superior surface finish, even for complex and large-scale designs.
Our large blow molding machines are specially designed for manufacturing plastic mannequins, plastic models, and other oversized hollow products. With advanced extrusion systems and high-strength clamping structures, the machine ensures excellent stability, uniform wall thickness, and superior surface finish, even for complex and large-scale designs.
Engineered for precision and durability, this equipment supports a variety of materials such as HDPE, PE, and PP, making it ideal for producing lifelike mannequins, display models, and customized industrial products. The flexible mold design allows for different shapes and sizes to meet diverse market demands.
Featuring fully automatic operation, energy-efficient performance, and an intelligent control system, our blow molding machines help manufacturers improve productivity while maintaining consistent quality. It is the perfect solution for businesses looking to expand into high-end, large plastic product manufacturing.
1. Multi-layer co-extrusion touch head with heart-shaped or spiral flow channel. 200 litre plastic drum blow molding machine Single-layer die head with double-layer compensation shunt shuttle
2. Hydraulic cylinder that moves the mold. The whole machine has hydraulic control, making production and use more stable.
3. 18.5” touch screen display, more friendly operation interface. Integrated 100-point axial wall thickness control, precise control of product wall thickness, saving raw material costs.
4. Electrical system, including circuit switches,frequency converters and servo controllers of the entire machine
5. The screw is used to heat raw materials and is equipped with a heating coil. After the raw materials enter the screw, they are heated and flow into the die.
|
Model NO. |
YSD-PY20L |
Raw Material |
HDPE |
|
Making Method of Parison |
Extrusion-Blow Molding |
Automation |
Automatic |
|
Computerized |
Computerized |
Certification |
CE, ISO9001:2008, Ysd |
|
After-sales Service |
24 Hours |
Machine Type |
High Speed Plastic Bottle Making Machine |
|
Control Mode |
PLC |
Motor Power |
11kw |
|
Clamping Force |
1600kN |
Blow Moulding Type |
Extrusion Blow Moulding |
|
Auto Deflashing |
Available |
Output(Dry Cycle) |
750 PC/Hr; |
|
Die Head Option |
Single, Double, Tri-Head, Tetra-Head |
Production Usage |
Bottle, Toy, etc |
|
Max Container Capacity |
250L |
Transport Package |
Wooden Case |
|
Specification |
2800*1800*2000mm |
Trademark |
YSD |
|
Origin |
China |
Production Capacity |
500 |
|
MODEL |
YSD-PY50L |
|
Max container capacity |
50L |
|
Quantity mold |
1 sets |
|
Production capacity |
60pc/h |
|
Screwed diameter |
80mm |
|
Screwed diameter ratio |
1:25L/D |
|
HDPE Max Output |
60kg/h |
|
Material cutting method |
Hot knife |
|
Max mold size(L×W×H) |
220×300×380mm |
|
Blowing pressure |
0.4-0.6Mpa |
|
gas consumption |
0.5m3/min |
|
Power of mechanical and electrical extruder |
18KW |
|
Heating power of extruder |
10KW |
|
Total power |
40KW |
|
Dimension mm(L X W X H) |
L |
|
Weight |
2.5T |
|
Control type |
PLC PC Control |
|
Suitable material |
PE/PP |
“ Customized services are superb! The manufacturer optimized the mold design based on our bottle type requirements, directly enhancing the competitiveness of the product by one level. “
“ This machine fully complies with international standards and has helped us win multiple major overseas clients. “
“ Blow molding machines have a high degree of automation, simple and easy to operate, significantly reducing labor costs, and production efficiency is higher than expected “
“ The equipment has high molding accuracy, and the blow molded products have uniform wall thickness and smooth appearance, fully meeting our quality requirements for mass production “
“ Super stable operation, continuous operation without faults for several months, low maintenance costs, and cost-effective long-term use “
“ In response to our special product requirements, the manufacturer provides customized blow molding solutions that are adaptable and practical “
We offer a wide range of blow molding machines, extrusion blow molding machines, plastic blow molding machines and bottle blow making machines.
Equipped with a professional technical team to provide one-on-one services throughout the entire chain of "requirement communication - solution design - equipment research and development - installation and debugging - after-sales maintenance"
