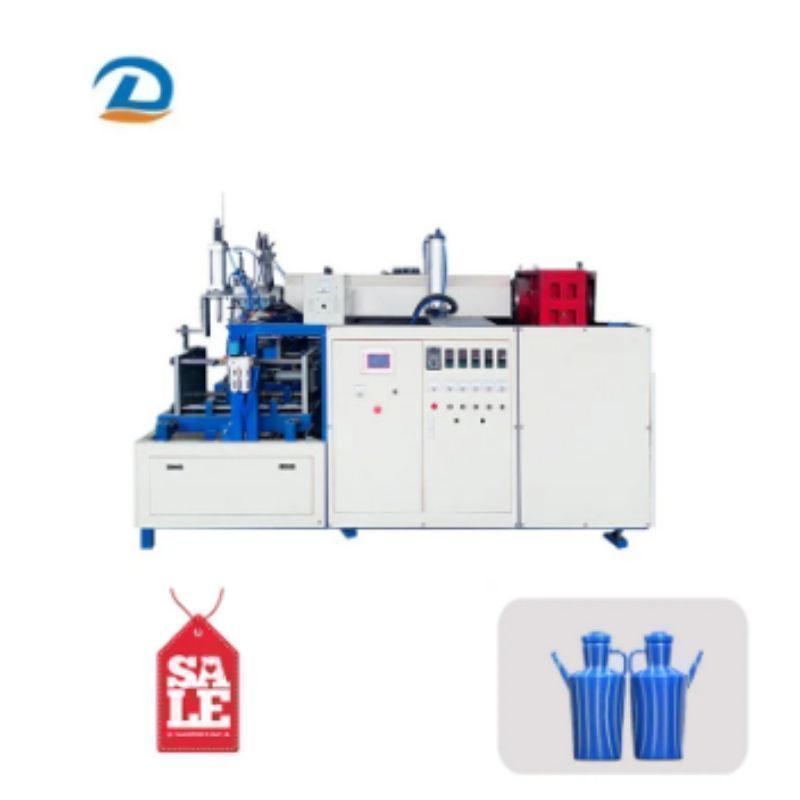

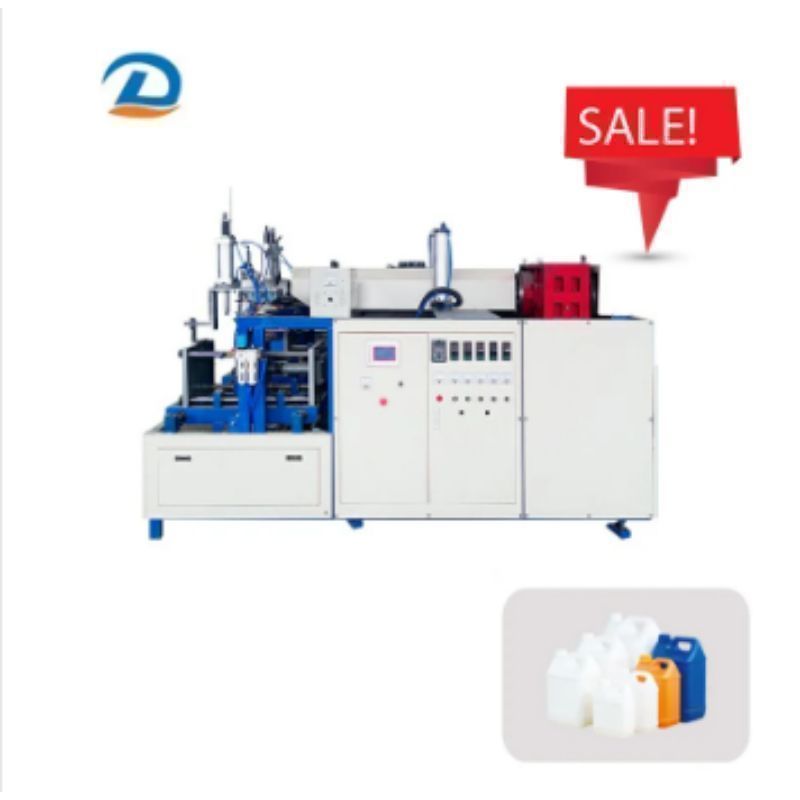

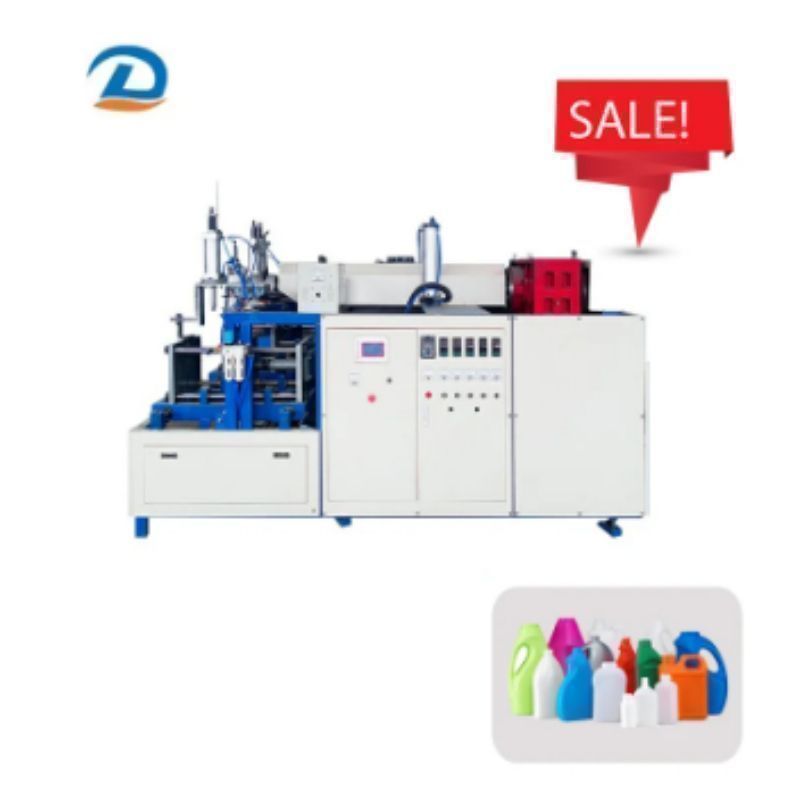

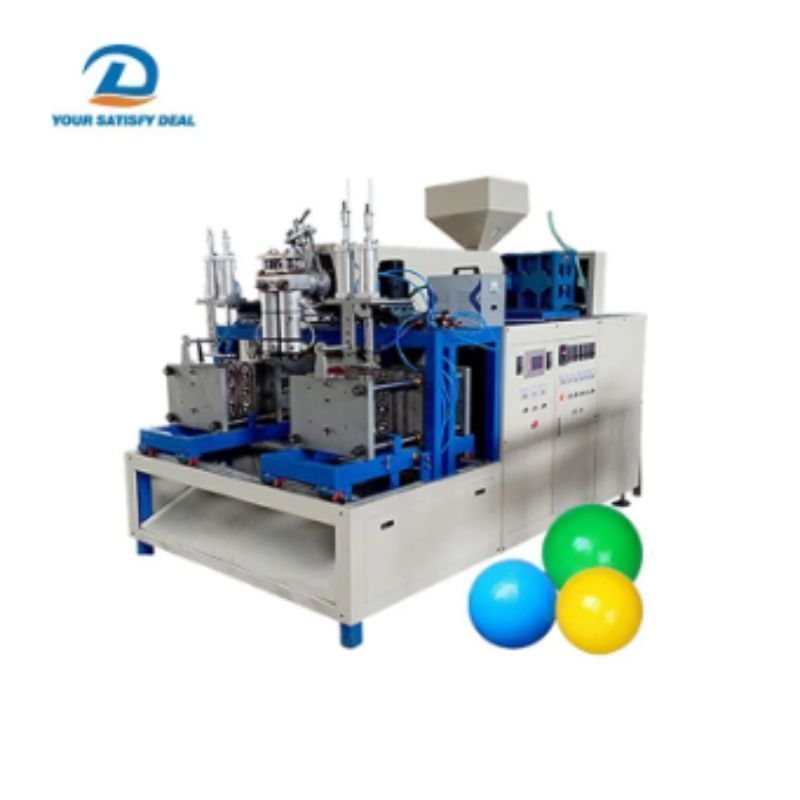

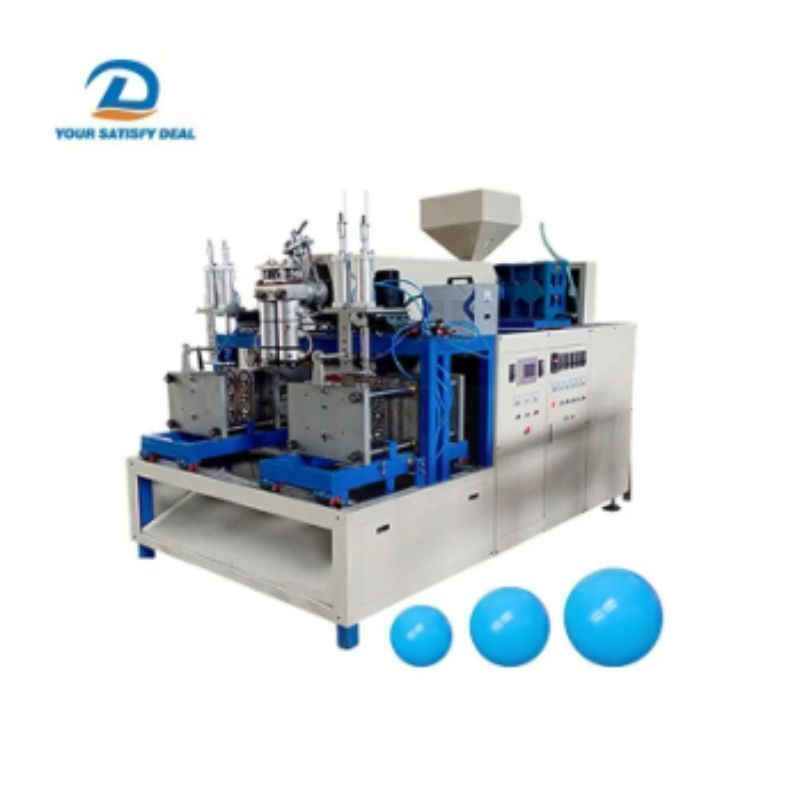

Plastic Sea Ball Plastic Toy Ocean Ball Making Machine/ Plastic Bottle Barrel Blow Molding Moulding Machine producingPP/PE/HDPE/LDPE.plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc. Beverage bottle, cosmetic bottle, medicine bottle, jar etc.
Plastic Sea Ball Plastic Toy Ocean Ball Making Machine/ Plastic Bottle Barrel Blow Molding Moulding Machine producingPP/PE/HDPE/LDPE. plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc. Beverage bottle, cosmetic bottle, medicine bottle, jar etc.
1. The machine is equipped with a pneumatic screen changer, resulting in cleaner and more transparent plastic balls.
2. The machine can produce not only plastic balls but also bottles with a maximum width of 110mm.
3. It uses a high-speed Siemens (Germany) PLC, equipped with a multi-language touchscreen and a user-friendly menu display, making it easy to control and operate.
4.The finished tubes have a smooth surface and uniform wall thickness, meeting common food-grade packaging requirements.
|
Model NO. |
YSD-PY10L |
Raw Material |
HDPE |
|
Making Method of Parison |
Ocean ball Blow Molding |
Automation |
Semi Automatic |
|
Computerized |
Computerized |
Certification |
CE, ISO9001:2008, Ysd |
|
After-sales Service |
24 Hours |
Machine Type |
High Speed Plastic Bottle Making Machine |
|
Control Mode |
PLC |
Motor Power |
11kw |
|
Clamping Force |
1600kN |
Blow Moulding Type |
Extrusion Blow Moulding |
|
Auto Deflashing |
Available |
Output(Dry Cycle) |
1800 PC/Hr; |
|
Die Head Option |
2 Single, Double, Tri-Head, 2-Head |
Production Usage |
Bottle, Toy, etc |
|
Max Container Capacity |
5L |
Transport Package |
Wooden Case |
|
Specification |
2800*1500*2100mm |
Trademark |
YSD |
|
Origin |
China |
Production Capacity |
500 |
|
MODEL |
YSD-PY10L |
|
Quantity mould head |
2 |
|
Ocean ball size(diameter) |
5-10cm |
|
Quantity mold |
2 |
|
Mold mouth max diameter |
280 |
|
Production capacity |
|
|
Screwed diameter |
80mm |
|
Clamp stroke( mm) |
500 |
|
Screwed diameter ratio |
1:25L/D |
|
HDPE Max Output |
55kg/h |
|
Material cutting method |
Hot knife |
|
Filter changer |
Available |
|
Max mold size（L×W×H） |
300×550×550 |
|
Blowing pressure |
0.4-0.6Mpa |
|
Power of mechanical and electrical extruder |
18.5KW |
|
Heating power of extruder |
11KW |
|
Total power |
50 KW |
|
Dimension mm（L X W X H） |
3700×1950×2000 |
|
Weight |
3.5 T |
|
Control type |
PLC PC Control |
|
Suitable material |
PE/PP |
“ Customized services are superb! The manufacturer optimized the mold design based on our bottle type requirements, directly enhancing the competitiveness of the product by one level. “
“ This machine fully complies with international standards and has helped us win multiple major overseas clients. “
“ Blow molding machines have a high degree of automation, simple and easy to operate, significantly reducing labor costs, and production efficiency is higher than expected “
“ The equipment has high molding accuracy, and the blow molded products have uniform wall thickness and smooth appearance, fully meeting our quality requirements for mass production “
“ Super stable operation, continuous operation without faults for several months, low maintenance costs, and cost-effective long-term use “
“ In response to our special product requirements, the manufacturer provides customized blow molding solutions that are adaptable and practical “
We offer a wide range of blow molding machines, extrusion blow molding machines, plastic blow molding machines and bottle blow making machines.
Equipped with a professional technical team to provide one-on-one services throughout the entire chain of "requirement communication - solution design - equipment research and development - installation and debugging - after-sales maintenance"
