Daily Chemical Bottle

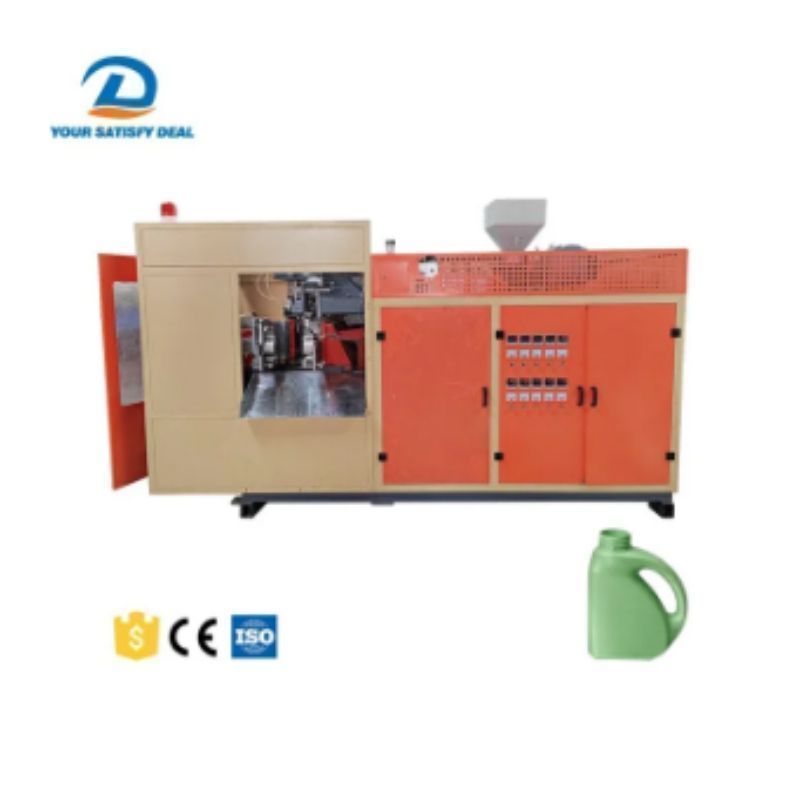

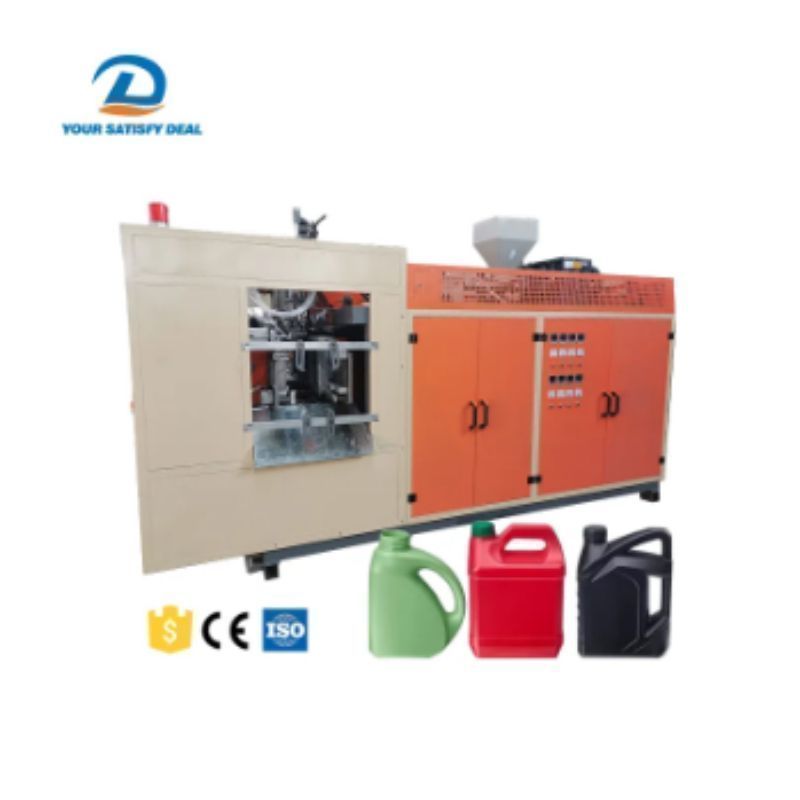

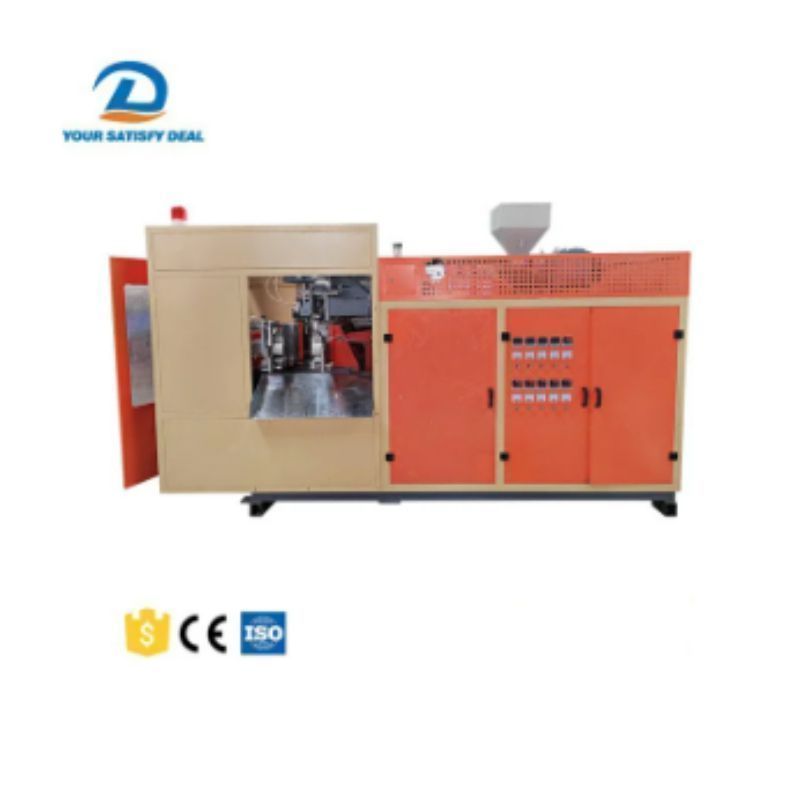

This 1L–5L automatic single-head blow molding machine is designed for the efficient production of plastic oil containers and similar packaging products. The machine features stable extrusion, precise mold control, and reliable blowing performance to ensure consistent wall thickness and good surface finish.
This 1L–5L automatic single-head blow molding machine is designed for the efficient production of plastic oil containers and similar packaging products. The machine features stable extrusion, precise mold control, and reliable blowing performance to ensure consistent wall thickness and good surface finish. With automatic operation, simple control, and easy maintenance, it is suitable for continuous production of motor oil bottles, lubricant containers, and chemical packaging. Its compact structure and dependable performance make it a practical and cost-effective solution for medium-capacity production needs.
Stable and consistent production Precise extrusion and mold control ensure uniform wall thickness and reliable product quality for oil containers.
Fully automatic operation Automated blowing, cooling, and take-out reduce labor requirements and improve production efficiency.
Wide product size range Suitable for 1L to 5L containers, meeting common demands for motor oil, lubricant, and chemical packaging.
Compact and cost-effective design Space-saving structure with low operating and maintenance costs, ideal for medium-scale production lines.
|
Model NO. |
YSD-PY5L |
Raw Material |
HDPE/PP/LDPE |
|
Making Method of Parison |
Extrusion-Blow Molding |
Automation |
Full Automatic |
|
Computerized |
Computerized |
Certification |
CE, ISO9001:2008, Ysd |
|
After-sales Service |
24 Hours |
Machine Type |
High Speed Plastic Bottle Making Machine |
|
Control Mode |
PLC |
Motor Power |
11kw |
|
Total power |
17.5kw |
Blow Moulding Type |
Extrusion Blow Moulding |
|
Auto Deflashing |
Available |
Output(Dry Cycle) |
180PC/Hr; |
|
Die Head Option |
Single, Double, Tri-Head, Tetra-Head |
Production Usage |
Bottle, Toy, etc |
|
Max Container Capacity |
250L |
Transport Package |
Wooden Case |
|
Specification |
2800*1800*2000mm |
Trademark |
YSD |
|
Origin |
China |
Production Capacity |
500 |
|
Size and weight |
||
|
1 |
outline dimension /mm |
3680*2000*2100 |
|
2 |
weight |
4T |
|
Extruder |
||
|
1 |
Screw diameter |
65mm |
|
2 |
draw ratio |
26:1 |
|
3 |
Drive motor / KW |
11 |
|
4 |
Alternating current motor frequency converter |
11 |
|
5 |
Number of heating sections with air cooling / section |
4-5 |
|
6 |
Plasticizing amount KG/H |
55 |
|
7 |
heating power /KW |
12 |
|
8 |
Heating method |
Mica heating ring + cast aluminum fan constant temperature |
|
9 |
reduction box |
Hard tooth surface reducer (Guomao Guotai 146) |
|
Die head |
||
|
1 |
Number of molds |
1(1L-5L) |
|
Open and close mold device |
||
|
1 |
Template size /mm |
350*400 (subject to actual product production) |
|
2 |
Locking force /KN |
200 |
|
3 |
Open and close stroke /mm |
250 |
|
4 |
Mold size |
Customer reality |
|
5 |
Template moves support components |
Taiwan linear guide |
|
Hydraulic pressure system |
||
|
1 |
servo drivers |
Delta Taiwan |
|
2 |
Cooling water for the oil line |
have |
|
3 |
Oil temperature and oil level control |
Actual observations |
|
Pneumatic system |
||
|
1 |
working pressure |
1.0Mpa |
|
2 |
Blow pressure |
0.3-0.8Mpa |
|
5 |
Blow on the mold head |
have |
|
7 |
Quick exhaust |
have |
|
Shape control |
||
|
1 |
PLC control |
Schneider, France |
|
2 |
operation interface |
Schneider, France |
|
3 |
Formula storage |
have |
|
Electrical |
||
|
1 |
contactor |
Shanghai Yatai |
|
2 |
Total capacity (approx.) |
30kw |
|
3 |
Average energy consumption (approx.) |
13kw |
|
Heating control |
||
|
1 |
Heat the main element |
Solid state relay + intelligent temperature control |
|
2 |
Thermocouple type |
K scale division |
|
3 |
Upper and lower limit alarm |
have |
|
4 |
Thermocouple and heating section line alarm |
Break the line alarm |
|
5 |
Preheating function |
have |
|
Other |
||
|
1 |
The machine uses cooling water |
have |
|
2 |
Cooling water for molds |
have |
|
3 |
Compressed air consumption |
/ |
|
4 |
1 set of core mold sleeve |
Made according to customer's product needs |
|
5 |
testing materials |
Supplier provides |
