JerryCan

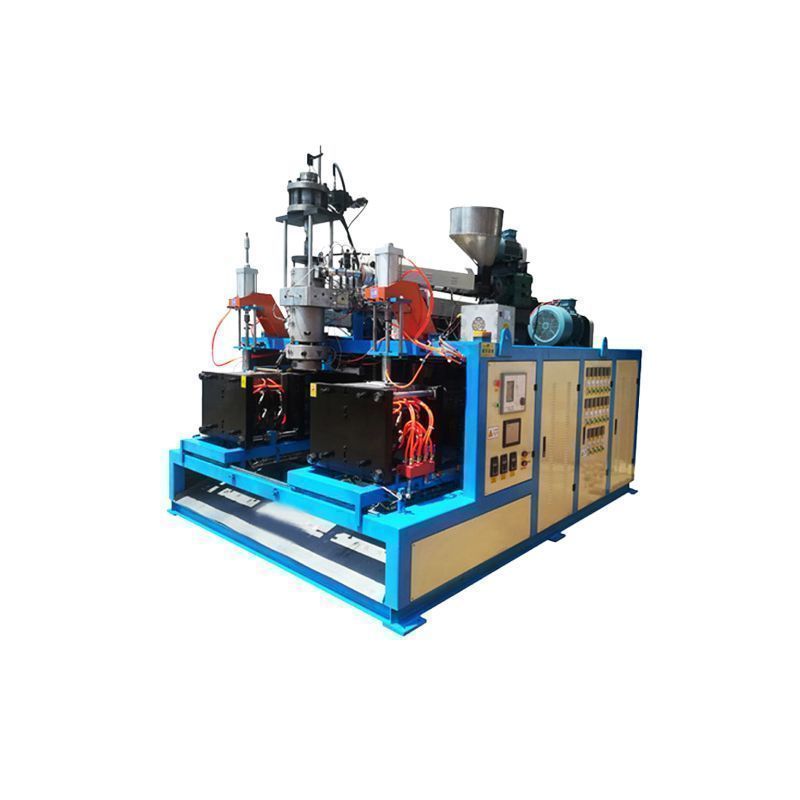

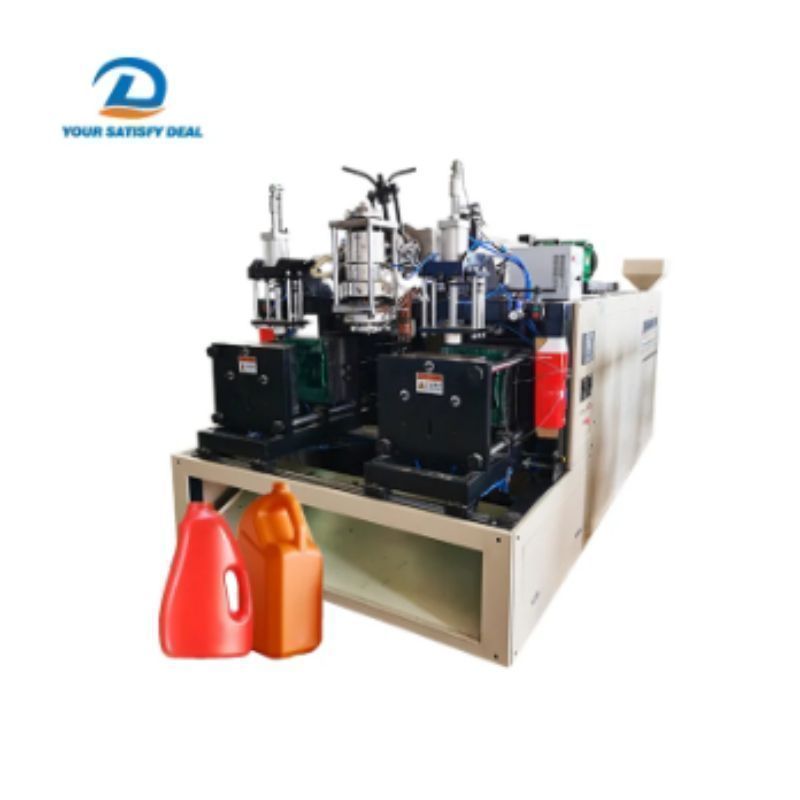

Plastic Sea Ball Plastic Toy Ocean Ball Making Machine/ Plastic Bottle Barrel Blow Molding Moulding Machine producingPP/PE/HDPE/LDPE.plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc. Beverage bottle, cosmetic bottle, medicine bottle, jar etc.
Plastic Sea Ball Plastic Toy Ocean Ball Making Machine/ Plastic Bottle Barrel Blow Molding Moulding Machine producingPP/PE/HDPE/LDPE.plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc. Beverage bottle, cosmetic bottle, medicine bottle, jar etc.

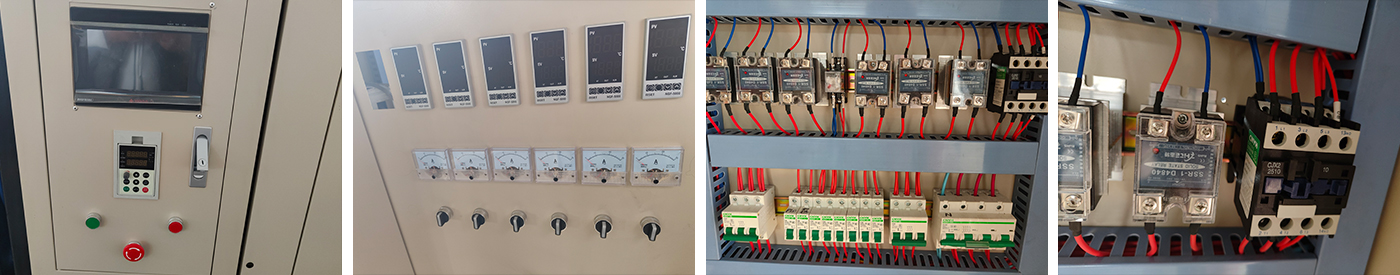

1. Bottle blow moulding machine adopts a new generation of control system, using Intel Atom 1.46G low-power 64-bit processor, integrated control, the machine operating parameters are directly displayed, and can be freely adjusted through the panel. Machine fault automatic diagnosis, automatic alarm and display.
2. Bottle blow moulding machine adopts 18.5” touch screen display, more friendly operation interface. Yi sunda 1 liter bottle blow molding machine adopts Integrated 100-point axial wall thickness control, 3 precise control of product wall thickness, saving raw material costs.
3. Bottle blow moulding machine adopts programmable timer is used for heating control and cooling energy-saving control for evening shutdown.
4. 5l bottle blow molding equipment adopts external USB interface makes reading and writing data more convenient.
5. Ethernet remote service access, remote diagnosis and correction of wrong parameters.
|
Model NO. |
YSD-PY5L |
Raw Material |
HDPE |
|
Making Method of Parison |
Ocean ball Blow Molding |
Automation |
Semi Automatic |
|
Computerized |
Computerized |
Certification |
CE, ISO9001:2008, Ysd |
|
After-sales Service |
24 Hours |
Machine Type |
High Speed Plastic Bottle Making Machine |
|
Control Mode |
PLC |
Motor Power |
11kw |
|
Clamping Force |
1600kN |
Blow Moulding Type |
Extrusion Blow Moulding |
|
Auto Deflashing |
Available |
Output(Dry Cycle) |
180PC/Hr; |
|
Die Head Option |
Single, Double, Tri-Head, 2-Head |
Production Usage |
Bottle, Toy, etc |
|
Max Container Capacity |
5L |
Transport Package |
Wooden Case |
|
Specification |
2800*1500*2100mm |
Trademark |
YSD |
|
Origin |
China |
Production Capacity |
500 |
|
MODEL |
YSD-PY5L |
|
Quantity mould head |
2 |
|
Quantity mold |
1 |
|
Mold mouth max diameter |
280 |
|
Production capacity |
150-180pc/h |
|
Screwed diameter |
80mm |
|
Clamp stroke( mm) |
500 |
|
Screwed diameter ratio |
1:25L/D |
|
HDPE Max Output |
55kg/h |
|
Material cutting method |
Hot knife |
|
Filter changer |
Available |
|
Max mold size（L×W×H） |
300×550×550 |
|
Blowing pressure |
0.4-0.6Mpa |
|
Power of mechanical and electrical extruder |
18.5KW |
|
Heating power of extruder |
11KW |
|
Total power |
50 KW |
|
Dimension mm（L X W X H） |
3700×1950×2000 |
|
Weight |
3.5 T |
|
Control type |
PLC PC Control |
|
Suitable material |
PE/PP |
“ Customized services are superb! The manufacturer optimized the mold design based on our bottle type requirements, directly enhancing the competitiveness of the product by one level. “
“ This machine fully complies with international standards and has helped us win multiple major overseas clients. “
“ Blow molding machines have a high degree of automation, simple and easy to operate, significantly reducing labor costs, and production efficiency is higher than expected “
“ The equipment has high molding accuracy, and the blow molded products have uniform wall thickness and smooth appearance, fully meeting our quality requirements for mass production “
“ Super stable operation, continuous operation without faults for several months, low maintenance costs, and cost-effective long-term use “
“ In response to our special product requirements, the manufacturer provides customized blow molding solutions that are adaptable and practical “
We offer a wide range of blow molding machines, extrusion blow molding machines, plastic blow molding machines and bottle blow making machines.
Equipped with a professional technical team to provide one-on-one services throughout the entire chain of "requirement communication - solution design - equipment research and development - installation and debugging - after-sales maintenance"
