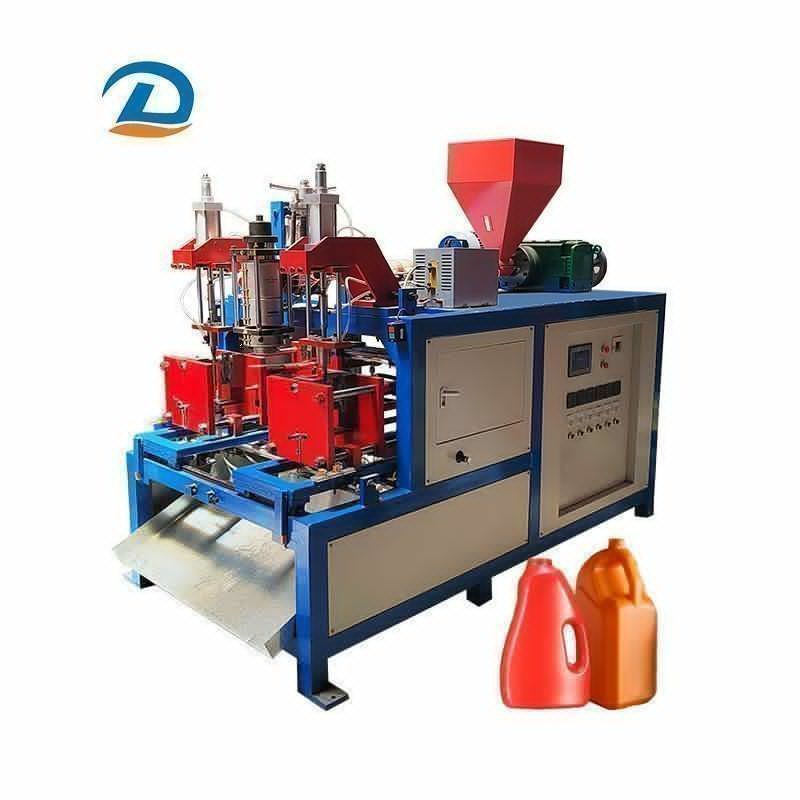

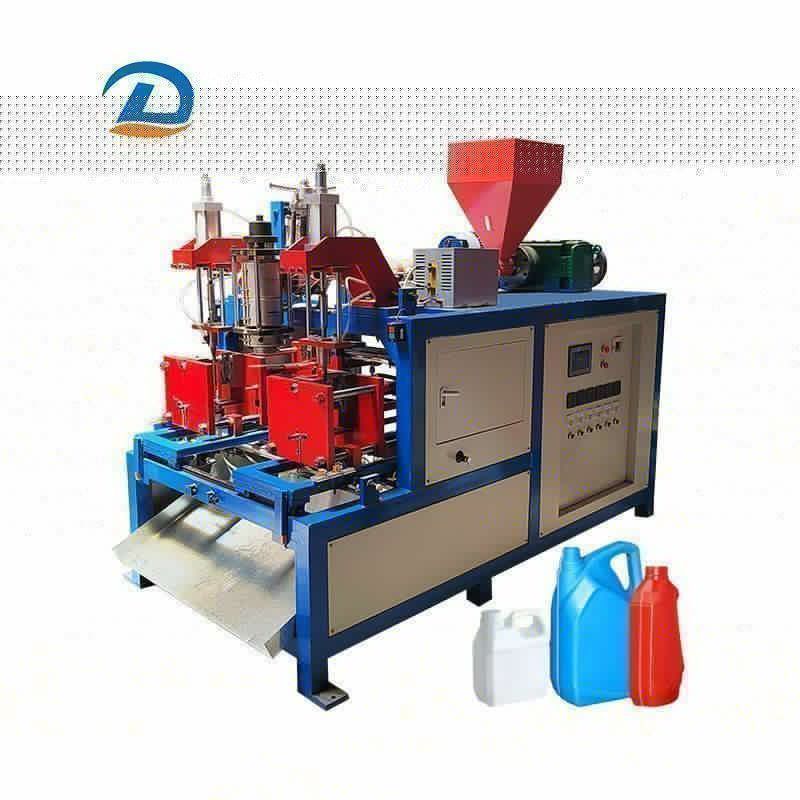

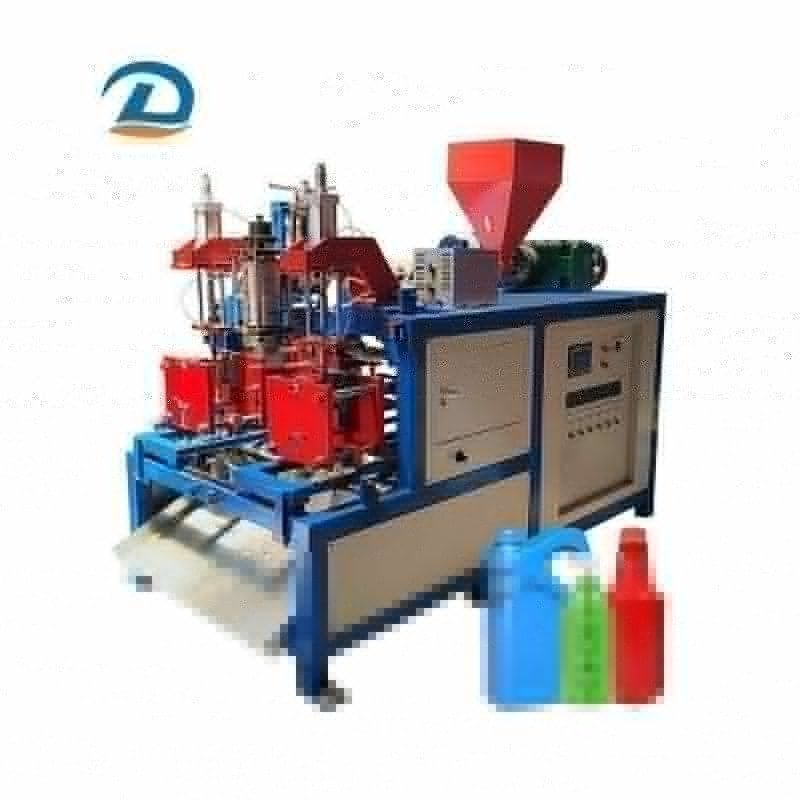

The maximum capacity of this machine is 2L. Small blow molding machines are essential equipment in the manufacturing industry. They are used to produce hollow plastic products such as bottles, containers, and other packaging materials. This machine utilizes blow molding technology, which involves melting the plastic and then blowing air into a mold to shape it into the desired form.
The maximum capacity of this machine is 2L. Small blow molding machines are essential equipment in the manufacturing industry. They are used to produce hollow plastic products such as bottles, containers, and other packaging materials. This machine utilizes blow molding technology, which involves melting the plastic and then blowing air into a mold to shape it into the desired form.
1. All hydraulic components are from the Japanese brand Yuken. Pressure and proportional control are managed by a PLC, ensuring stable operation; mold movement is controlled by a dedicated speed limiting valve, ensuring precise positioning without impact.
2. The machine has a small size and weight, ensuring reliable and precise operation; it features high airflow and minimal leakage.

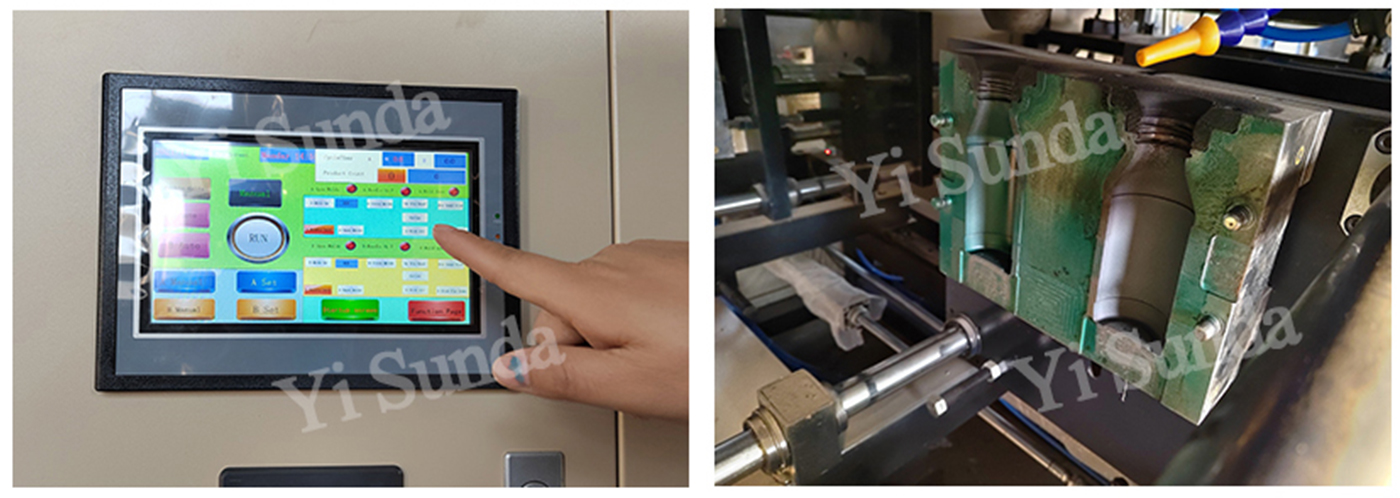

3. It uses a high-speed Siemens (Germany) PLC, equipped with a multi-language touchscreen and a user-friendly menu display, making it easy to control and operate.
|
Model NO. |
YSD-PY2L |
Raw Material |
HDPE |
|
Making Method of Parison |
Extrusion-Blow Molding |
Automation |
Semi Automatic |
|
Computerized |
Computerized |
Certification |
CE, ISO9001:2008, Ysd |
|
After-sales Service |
24 Hours |
Machine Type |
High Speed Plastic Bottle Making Machine |
|
Control Mode |
PLC |
Motor Power |
11kw |
|
Clamping Force |
1600kN |
Blow Moulding Type |
Extrusion Blow Moulding |
|
Auto Deflashing |
Available |
Output(Dry Cycle) |
150 PC/Hr; |
|
Die Head Option |
Single, Double, Tri-Head, Tetra-Head |
Production Usage |
Bottle, Toy, etc |
|
Max Container Capacity |
5L |
Transport Package |
Wooden Case |
|
Specification |
2800*1500*2100mm |
Trademark |
YSD |
|
Origin |
China |
Production Capacity |
500 |
|
Maximum product volume (L) |
2L |
|
Number of die heads |
1 |
|
Die head center distance (mm) |
None |
|
Number of molds (sets) |
2 |
|
Production capacity (pcs/h) |
150-300 |
|
Screw diameter (mm) |
55 |
|
Screw length-to-diameter ratio (L/D) |
1:25 |
|
Maximum HDPE extrusion rate (kg/h) |
40 |
|
Clamping method |
Gas-liquid booster/Hydraulic |
|
Clamping force (T) |
10T |
|
Material pipe cutting method |
Hot cutting knife |
|
Maximum mold dimensions (thickness × width × height) (mm) |
200×180×350 |
|
Blowing pressure (MPa) |
0.4-0.6 |
|
Gas consumption (m³/min) |
0.5 |
|
Extruder motor power (KW) |
7.5 |
|
Extruder heating power (KW) |
6 |
|
Total power (KW) |
21 |
|
Overall dimensions (mm) (Length × Width × Height) |
2600×1600×2200 |
|
Total weight (kg) |
2200 |
|
Control method |
PLC computer control |
|
Suitable materials |
PE/PP |
“ Customized services are superb! The manufacturer optimized the mold design based on our bottle type requirements, directly enhancing the competitiveness of the product by one level. “
“ This machine fully complies with international standards and has helped us win multiple major overseas clients. “
“ Blow molding machines have a high degree of automation, simple and easy to operate, significantly reducing labor costs, and production efficiency is higher than expected “
“ The equipment has high molding accuracy, and the blow molded products have uniform wall thickness and smooth appearance, fully meeting our quality requirements for mass production “
“ Super stable operation, continuous operation without faults for several months, low maintenance costs, and cost-effective long-term use “
“ In response to our special product requirements, the manufacturer provides customized blow molding solutions that are adaptable and practical “
We offer a wide range of blow molding machines, extrusion blow molding machines, plastic blow molding machines and bottle blow making machines.
Equipped with a professional technical team to provide one-on-one services throughout the entire chain of "requirement communication - solution design - equipment research and development - installation and debugging - after-sales maintenance"
