Stackable Barrel

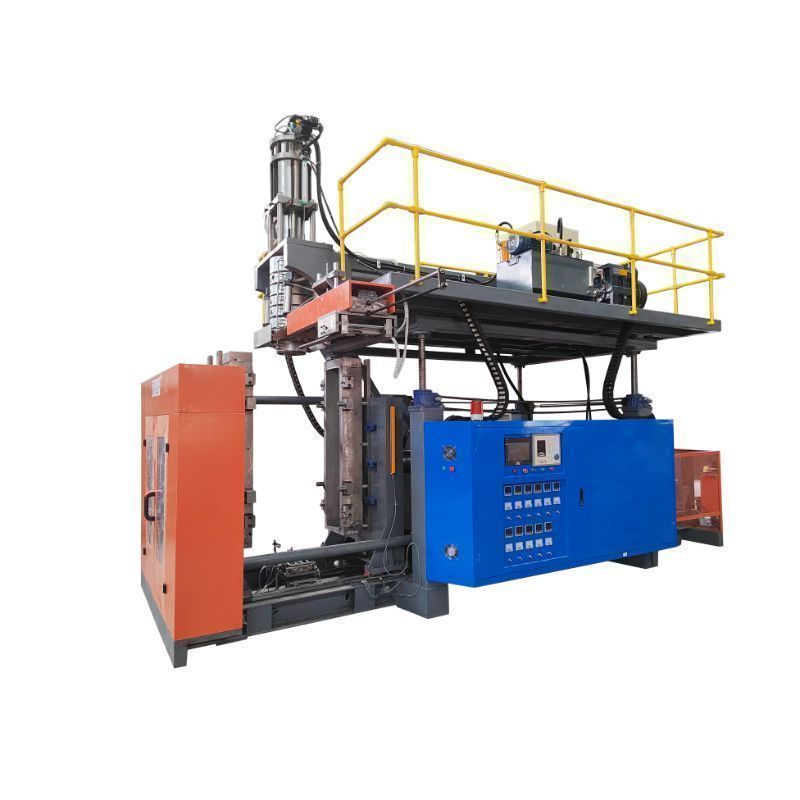

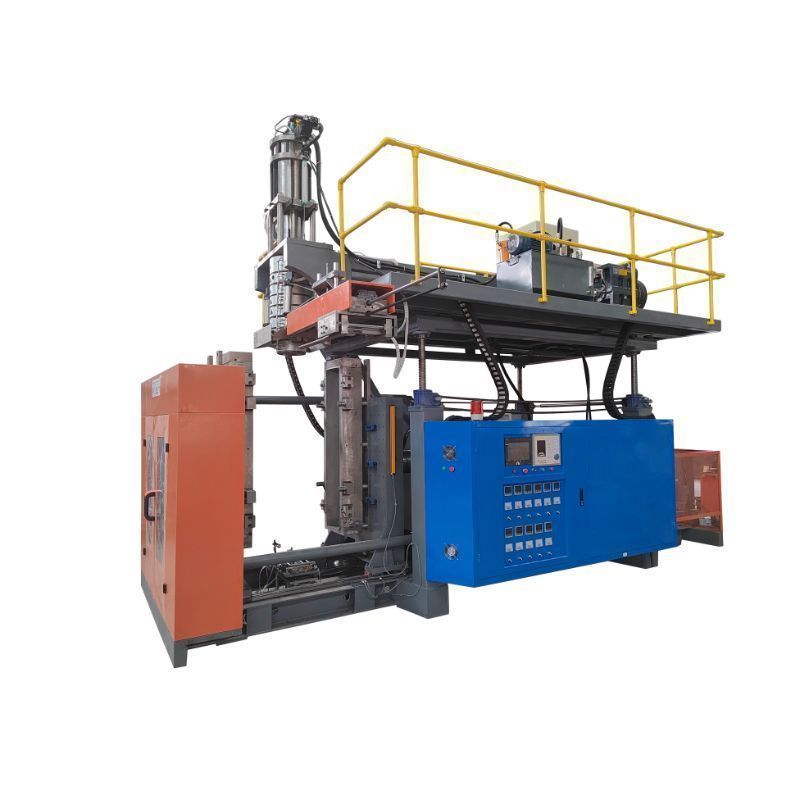

This semi automatic blow moulding machine is designed for producing plastic drums and barrels with reliable performance and consistent quality. Featuring a single station structure, it integrates extrusion, mold clamping, blowing, and cooling into a simple, efficient process.
This semi automatic blow moulding machine is designed for producing plastic drums and barrels with reliable performance and consistent quality. Featuring a single station structure, it integrates extrusion, mold clamping, blowing, and cooling into a simple, efficient process. Ideal for HDPE and PP materials, the machine is widely used in chemical, industrial, and liquid storage applications. Easy to operate and maintain, it offers low investment cost, energy efficiency, and stable production, making it the perfect choice for small to medium-sized manufacturers seeking high-quality plastic drum and barrel solutions
Multi-layer co-extrusion touch head with heart-shaped or spiral flow channel. 200 litre plastic drum blow molding machine Single-layer die head with double-layer compensation shunt shuttle
Hydraulic cylinder that moves the mold. The whole machine has hydraulic control, making production and use more stable.
18.5” touch screen display, more friendly operation interface. Integrated 100-point axial wall thickness control, precise control of product wall thickness, saving raw material costs.
Electrical system, including circuit switches,frequency converters and servo controllers of the entire machine
The screw is used to heat raw materials and is equipped with a heating coil. After the raw materials enter the screw, they are heated and flow into the die.
|
Model NO. |
YSD-PY5L |
Raw Material |
HDPE |
|
Making Method of Parison |
Extrusion-Blow Molding |
Automation |
Automatic |
|
Computerized |
Computerized |
Certification |
CE, ISO9001:2008, Ysd |
|
After-sales Service |
24 Hours |
Machine Type |
High Speed Plastic Bottle Making Machine |
|
Control Mode |
PLC |
Motor Power |
11kw |
|
Clamping Force |
1600kN |
Blow Moulding Type |
Extrusion Blow Moulding |
|
Auto Deflashing |
Available |
Output(Dry Cycle) |
750 PC/Hr; |
|
Die Head Option |
Single, Double, Tri-Head, Tetra-Head |
Production Usage |
Bottle, Toy, etc |
|
Max Container Capacity |
250L |
Transport Package |
Wooden Case |
|
Specification |
2800*1800*2000mm |
Trademark |
YSD |
|
Origin |
China |
Production Capacity |
500 |
|
MODEL |
YSD-PY50L |
|
Max container capacity |
50L |
|
Quantity mold |
1 sets |
|
Production capacity |
60pc/h |
|
Screwed diameter |
80mm |
|
Screwed diameter ratio |
1:25L/D |
|
HDPE Max Output |
60kg/h |
|
Material cutting method |
Hot knife |
|
Max mold size(L×W×H) |
220×300×380mm |
|
Blowing pressure |
0.4-0.6Mpa |
|
gas consumption |
0.5m3/min |
|
Power of mechanical and electrical extruder |
18KW |
|
Heating power of extruder |
10KW |
|
Total power |
40KW |
|
Dimension mm(L X W X H) |
L |
|
Weight |
2.5T |
|
Control type |
PLC PC Control |
|
Suitable material |
PE/PP |
