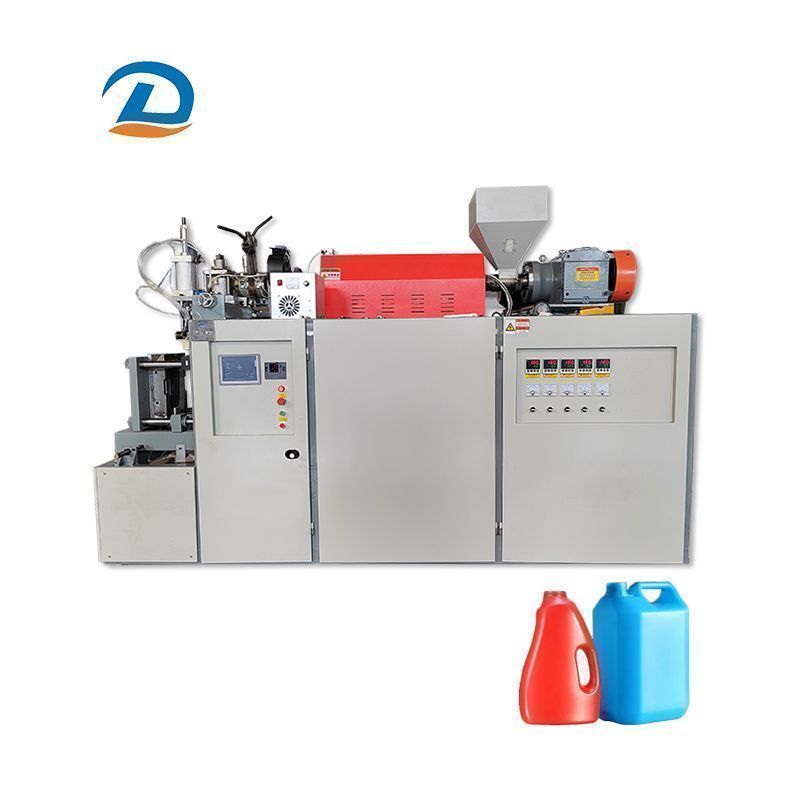

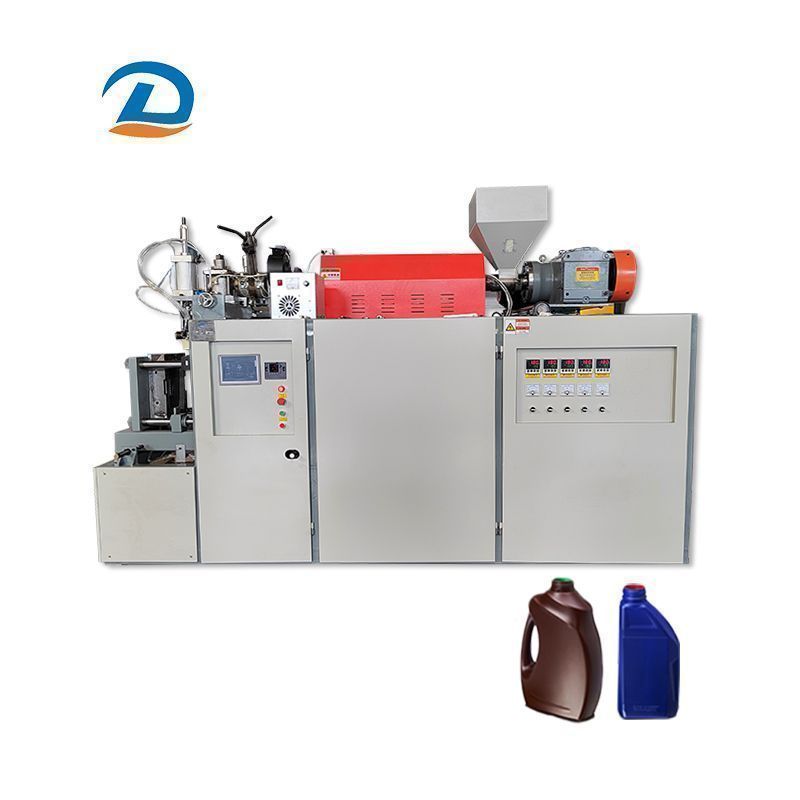

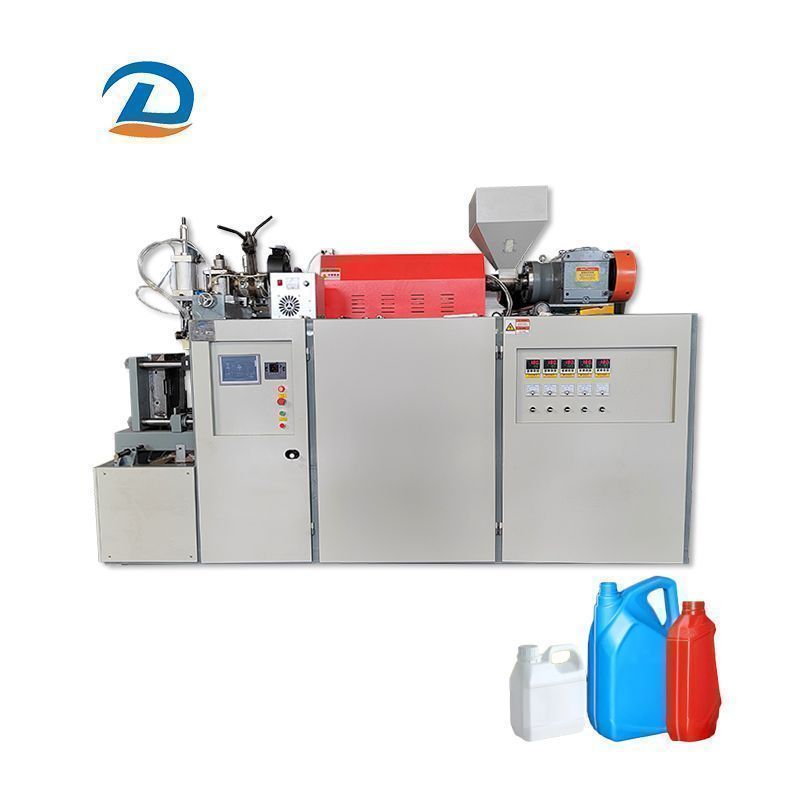

This semi automatic extrusion blow moulding machine is specially designed for producing toilet cleaner bottles with stable performance and reliable operation.
This semi automatic extrusion blow moulding machine is specially designed for producing toilet cleaner bottles with stable performance and reliable operation. It is suitable for processing HDPE and other plastic materials, offering flexible bottle design and consistent molding quality. The machine features simple operation, easy maintenance, and low investment cost, making it an ideal choice for small and medium plastic manufacturers. With efficient extrusion and blowing systems, it ensures smooth production and reliable output for daily chemical packaging applications.
Die heads are used for extruding material tubes. The number of die heads can be selected according to the size of the product and the required output.
Its main function is to execute mould carriage up action, mould closing clamping parison action. mould carriage down action supply clamping force to offset air blowing pressure.mould open for product de-molding.
PLC touch screen, machine operation is controlled by PLC, easy to operate. PLC language can be selected upon request
Electrical system, including circuit switches,frequency converters and servo controllers of the entire machine
The screw is used to heat raw materials and is equipped with a heating coil. After the raw materials enter the screw, they are heated and flow into the die.
|
Model NO. |
YSD-PY5L |
Raw Material |
HDPE |
|
Making Method of Parison |
Extrusion-Blow Molding |
Automation |
Automatic |
|
Computerized |
Computerized |
Certification |
CE, ISO9001:2008, Ysd |
|
After-sales Service |
24 Hours |
Machine Type |
High Speed Plastic Bottle Making Machine |
|
Control Mode |
PLC |
Motor Power |
11kw |
|
Clamping Force |
1600kN |
Blow Moulding Type |
Extrusion Blow Moulding |
|
Auto Deflashing |
Available |
Output(Dry Cycle) |
750 PC/Hr; |
|
Die Head Option |
Single, Double, Tri-Head, Tetra-Head |
Production Usage |
Bottle, Toy, etc |
|
Max Container Capacity |
250L |
Transport Package |
Wooden Case |
|
Specification |
2800*1800*2000mm |
Trademark |
YSD |
|
Origin |
China |
Production Capacity |
500 |
|
Model number |
YSD-PY5L |
|
Maximum product volume L |
standard1.5L |
|
Mould quantity (pay) |
2 |
|
Yield (empty cycle)pc/h |
600 |
|
Screw diameter mm |
55 |
|
Length-diameter ratio of screw L/D |
1:25 |
|
HDPE maximum extrusion capacity kg/h |
25 |
|
Material pipe cutting mode |
Hot knife |
|
Maximum mold size (thickness * width * height)mm |
220*230*400 |
|
Blowing pressure Mpa |
0.4-0.6 |
|
Gas consumption m3/min |
0.6 |
|
Extruder power KW |
7.5 |
|
Extruder heating power KW |
8 |
|
Total power KW |
16.5 |
|
Overall dimension mm (length * width * height) |
2600*1600*1900 |
|
Gross weight kg |
1500 |
|
Control mode |
PLC Computer control |
|
Suitable material |
PE/PP |
